Learn everything about how ScalperIQ works in NinjaTrader 8

Overview

ScalperIQ is a suite of technical indicators designed for analyzing intraday order flow dynamics. The suite consists of the ScalperIQ Tick Engine and four studies — Delta Flow, Phantom, Impact, and Excess Levels — each offering a unique perspective on market microstructure.

The Tick Engine processes raw tick data and provides it to each study. Delta Flow highlights changes in buying and selling pressure through candle coloring, delta pivot markers, and adaptive zone overlays. Phantom detects breakout escapes by tracking the largest individual trades on each bar. Impact identifies size imbalances using adaptive thresholds and marks levels where unusually large trades occurred. Excess Levels marks the prices where one side kept paying up into a high or low and could not get through, and projects that candle's range forward as a reference zone.

This suite is currently available for use on MotiveWave, EdgeProX, and NinjaTrader platforms.

What Is Delta?

Delta measures the difference between aggressive market orders executed at the ask and bid prices. When more orders are executed at the ask, delta is positive, indicating buying pressure. Conversely, when more orders are executed at the bid, delta is negative, reflecting selling pressure. Delta analysis can help identify short-term imbalances and shifts in control between buyers and sellers.

How It Works

ScalperIQ processes tick-level data through the Tick Engine, which aggregates raw tick information into per-bar metrics including delta, max trade sizes, and volume by price. Each study reads this shared data and applies its own analysis.

Delta Flow calculates bar-level delta values and visualizes them through candle coloring, delta pivot markers, and adaptive zone overlays. Phantom tracks the largest individual trades per bar and detects breakout escapes — moments where an unusually large trade pushes price beyond a key level. Impact identifies size imbalances using adaptive thresholds and marks levels where aggressive participation was significantly above normal. Excess Levels reads volume by price and aggression on each bar and marks zones where repeated buying into a high or selling into a low was absorbed while price stalled.

All components are configurable to suit various styles of trading, with options to optimize both performance and visual clarity.

ScalperIQ Portal

The ScalperIQ Portal is where subscribers manage everything related to their ScalperIQ installation and license. Lifetime keys don't use the portal: your key arrives by email as a .license file, and the plugin is on the Downloads page. Subscribers use it to download the latest version of the app, retrieve your license key, or move your license to a new device. You can access it anytime at portal.scalperiq.com or from the Portal link on the ScalperIQ website.

The portal provides a fast, self-service way to manage licenses and devices, ensuring users stay up and running with minimal friction.

How To Access The Portal

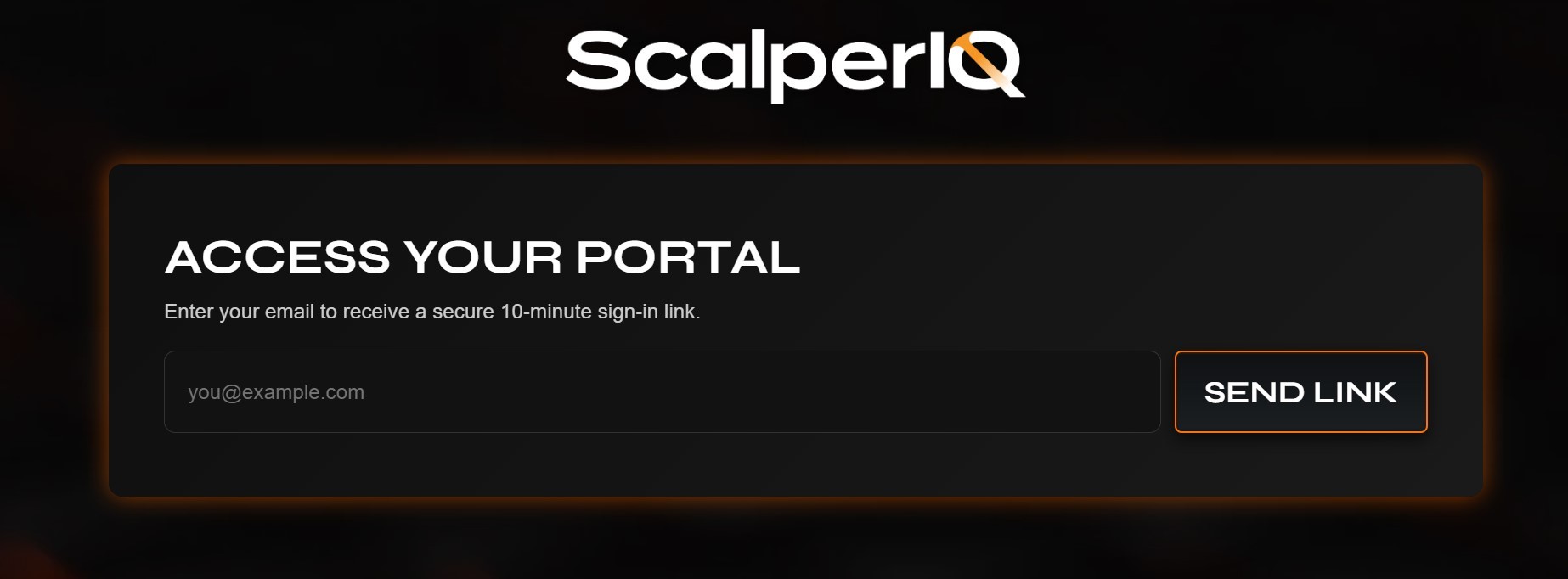

  • Go to the Portal: Visit portal.scalperiq.com/portal or click the "Portal" link on the ScalperIQ website.
  • Enter Your Email: Type your email address into the field and click "Send Link." You'll receive a secure, one-time sign-in link that expires after 10 minutes.

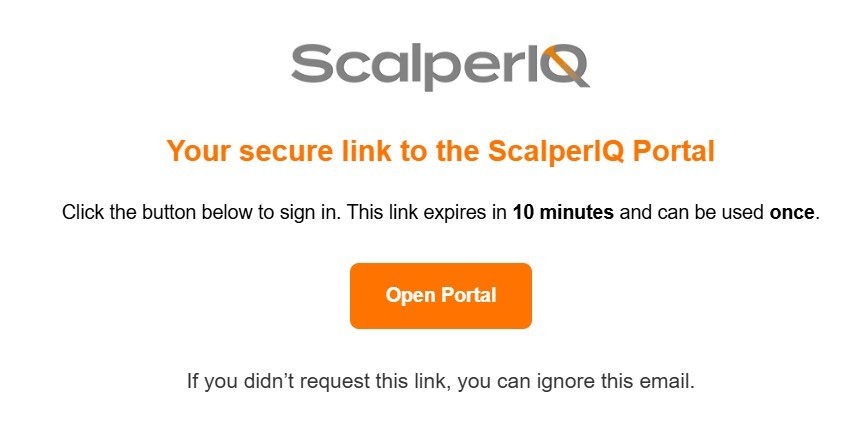

  • Open the Secure Link: Check your inbox for an email from ScalperIQ titled "Your secure link to the ScalperIQ Portal." Click Open Portal to sign in instantly — no password required.

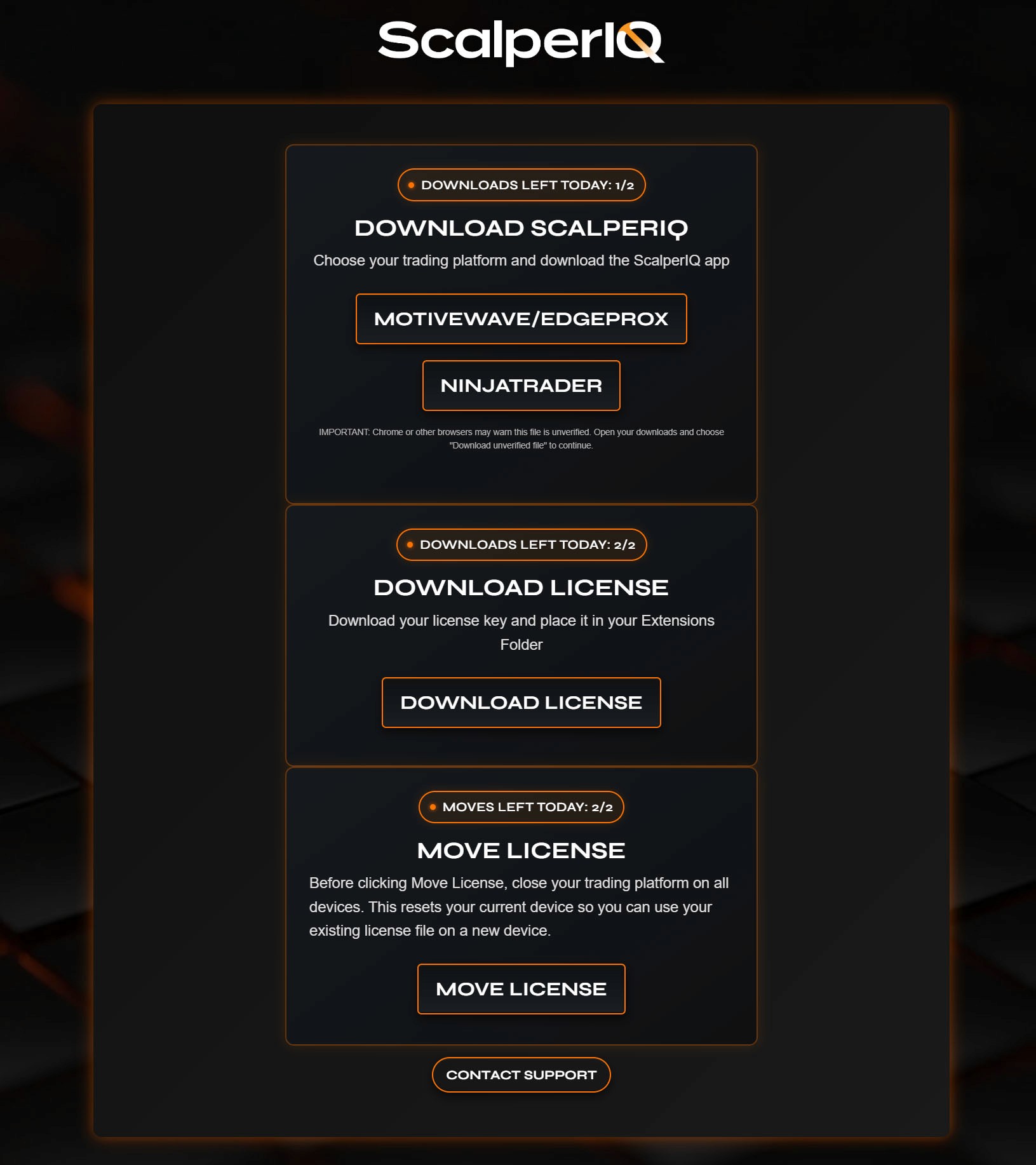

  • Manage Your Account: Once inside, your personalized dashboard will display several options: Download ScalperIQ, Download License, Move License, Contact Support.
Portal login page Secure sign-in email Portal dashboard

Moving Your License

Lifetime keys are not bound to a machine. You can use your key on more than one of your own computers: copy the .license file into the NinjaTrader 8 folder on each one. There is nothing to move. The key is for you alone; it may not be shared or used by anyone else.

Subscription licenses are node-locked, meaning a subscription can only be active on one computer at a time. Once activated, the license automatically binds to that specific device. To activate on another computer:

  1. Close NinjaTrader on all machines.
  2. Copy your license file to the NinjaTrader 8 folder on both computers, or download it on the other machine from the portal.
  3. Go to the ScalperIQ Portal and click Move License — this unbinds your license from its current machine.
  4. Open NinjaTrader on the new computer — the license will automatically bind to that device, and the previous machine will be signed out.

You can move your license up to twice every 24 hours. This system ensures flexibility while maintaining security and personal device binding.

Installation

Follow the steps below to install ScalperIQ for NinjaTrader 8. You need two files: the ScalperIQ zip and your .license file. Where they come from depends on how you bought ScalperIQ.

Lifetime key (bought on scalperiq.com): no portal sign-in needed.

  1. Download the plugin: Get the ScalperIQ zip file from Downloads.
  2. Save your license file: Your license key arrives by email as a .license attachment. Save it.
  3. Place your .license file: Move it to the NinjaTrader 8 folder, typically C:\Users\"Your User Name"\Documents\NinjaTrader 8. If NinjaTrader is open, restart it.

Subscription:

  1. Access the Portal: Visit portal.scalperiq.com/portal and sign in using your email to receive a one-time secure link.
  2. Download Your Files: Once inside the portal, download your ScalperIQ license file and the ScalperIQ zip file.
  3. Place your .license file: Move your .license file from your downloads folder to the NinjaTrader 8 folder typically located in C:\Users\"Your User Name"\Documents\NinjaTrader 8

Then import the zip and add ScalperIQ to a chart (below). With a lifetime key, the chart shows key #NNNN (your key number) in the bottom-left corner once ScalperIQ loads. Lifetime keys need ScalperIQ 3.0.0 or newer.

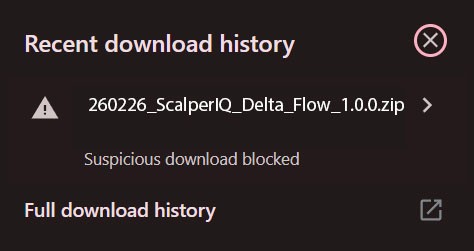

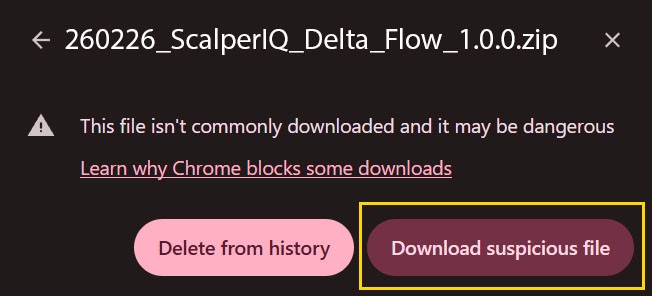

Chrome or other browsers may show a warning that the file "isn't commonly downloaded and it may be dangerous." Open your downloads, click the file, and choose "Download suspicious file" — this is expected and safe.

Chrome — Suspicious download blocked Chrome — Download suspicious file

Prep NinjaTrader for ScalperIQ

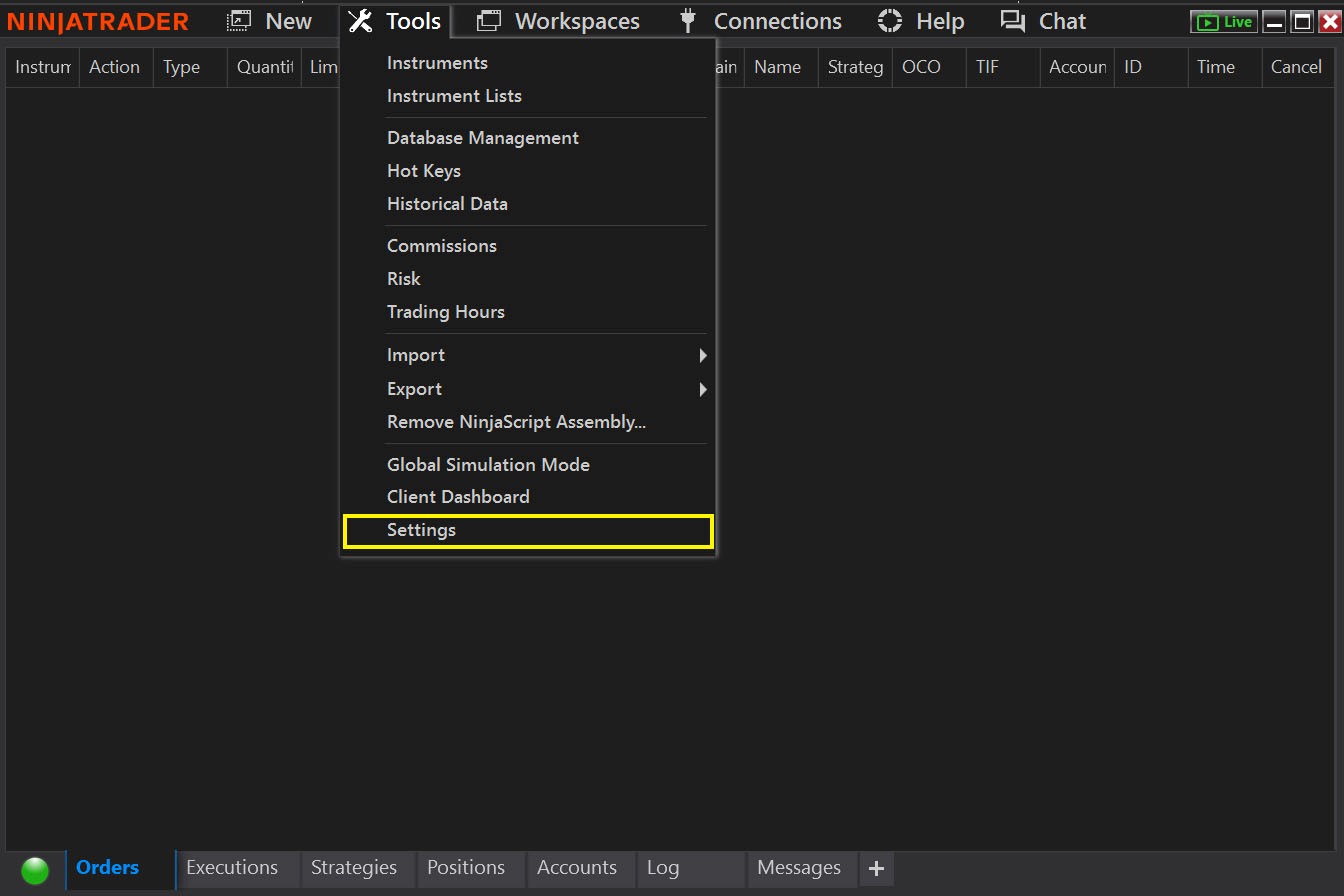

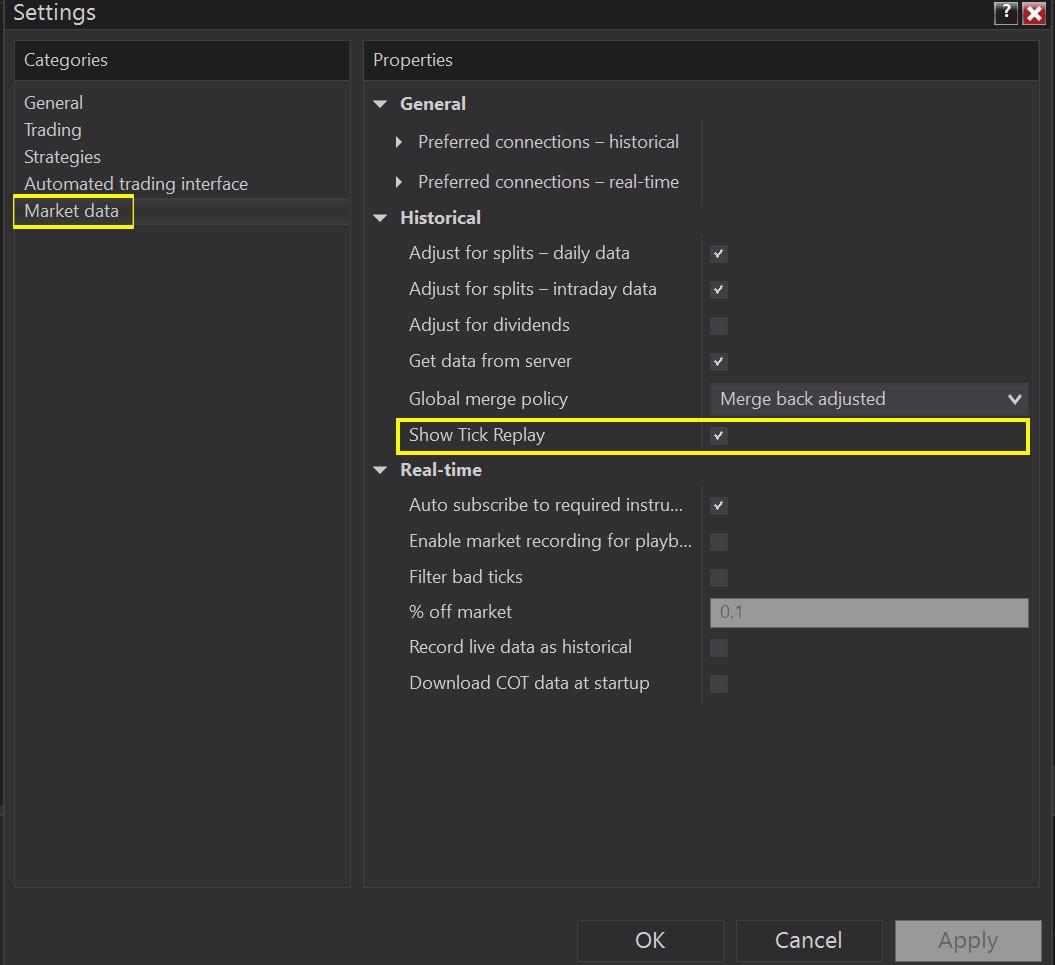

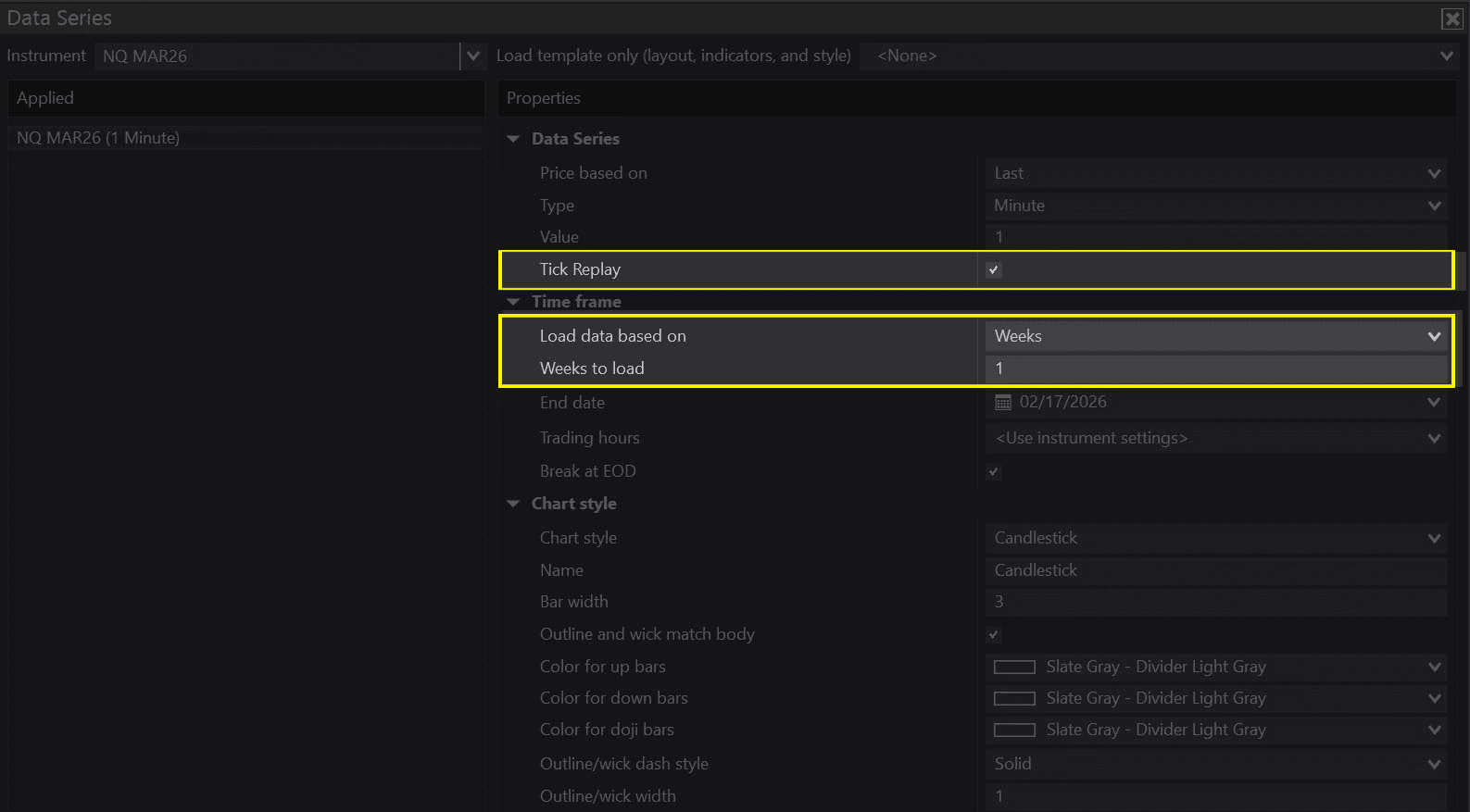

IMPORTANT. ScalperIQ has the ability to pull a vast amount of historical data. Before installing, we highly recommend the following settings as a starting place to check stability and load times on your system before requesting more historical data.

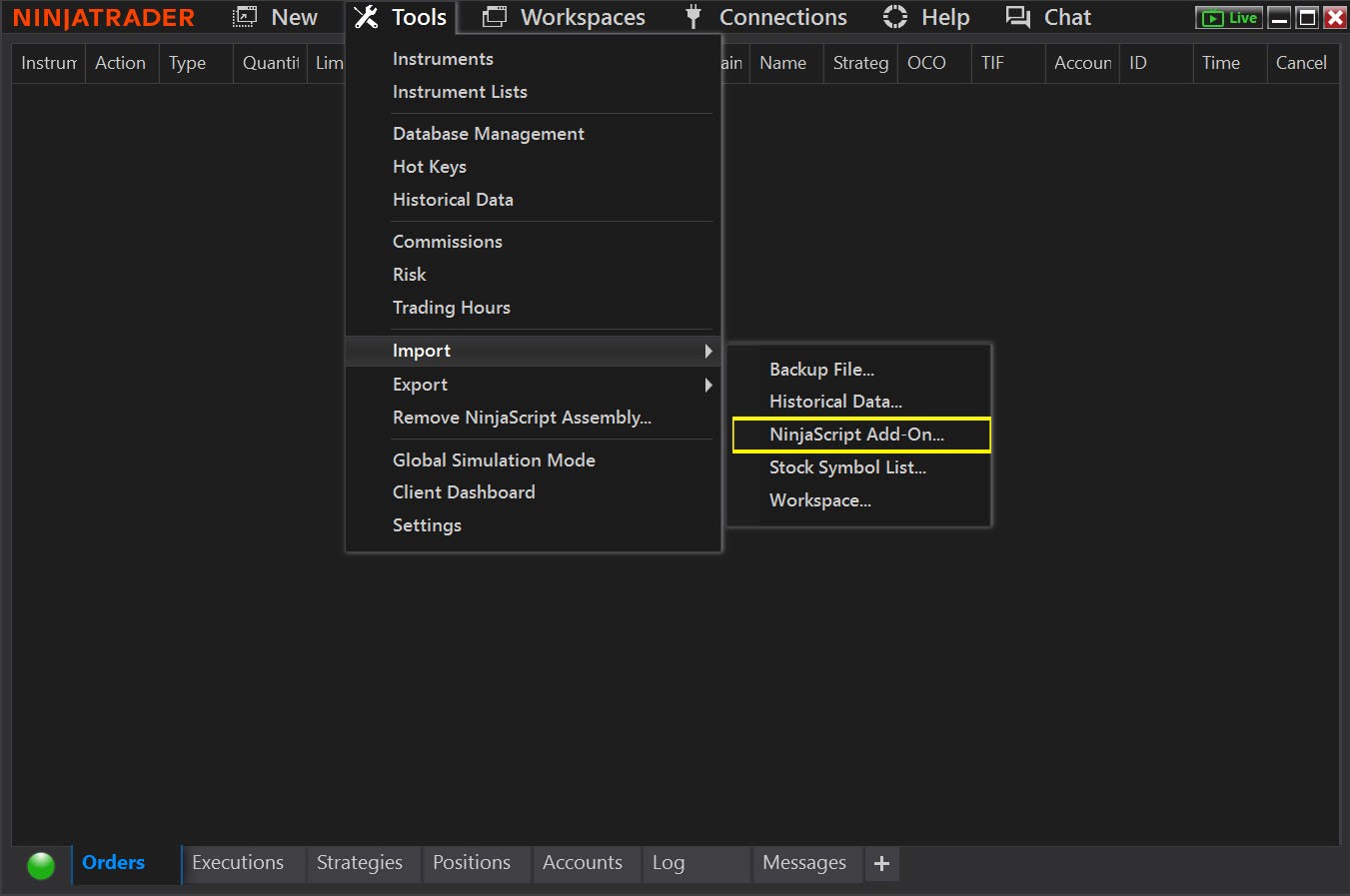

  1. Import ScalperIQ by navigating to Tools > Import > NinjaScript Add-On on the Control Center and selecting the downloaded zip file.
NinjaTrader — Tools > Import > NinjaScript Add-On

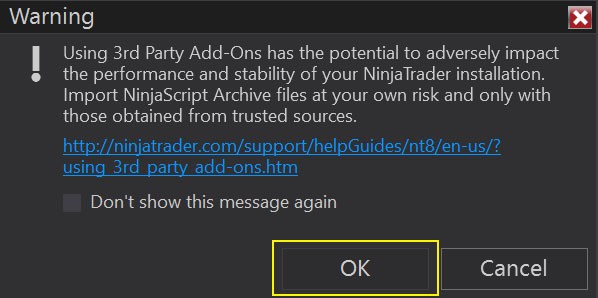

A third-party add-on warning appears; click OK to proceed.

NinjaTrader 3rd Party Add-On warning

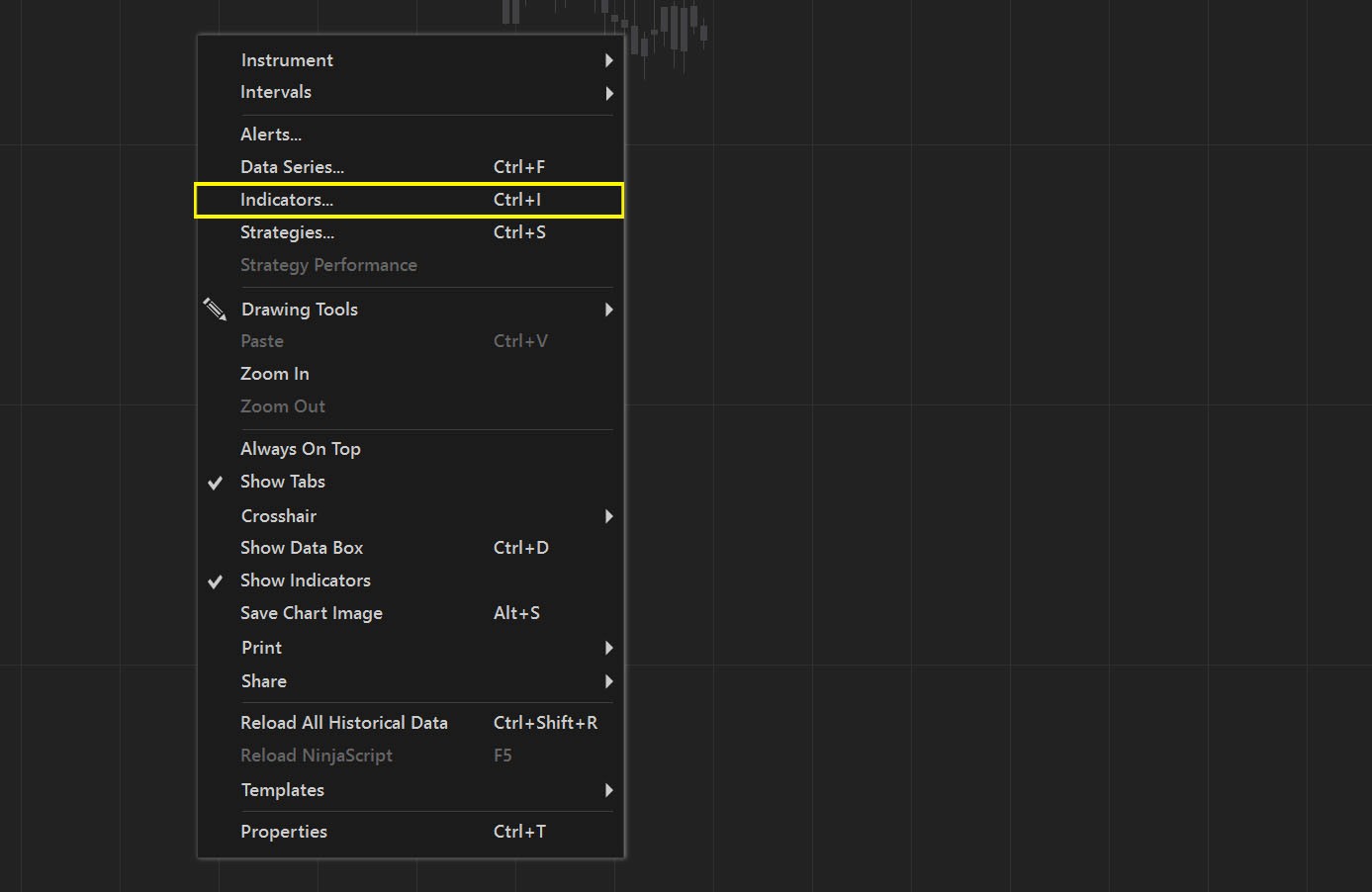

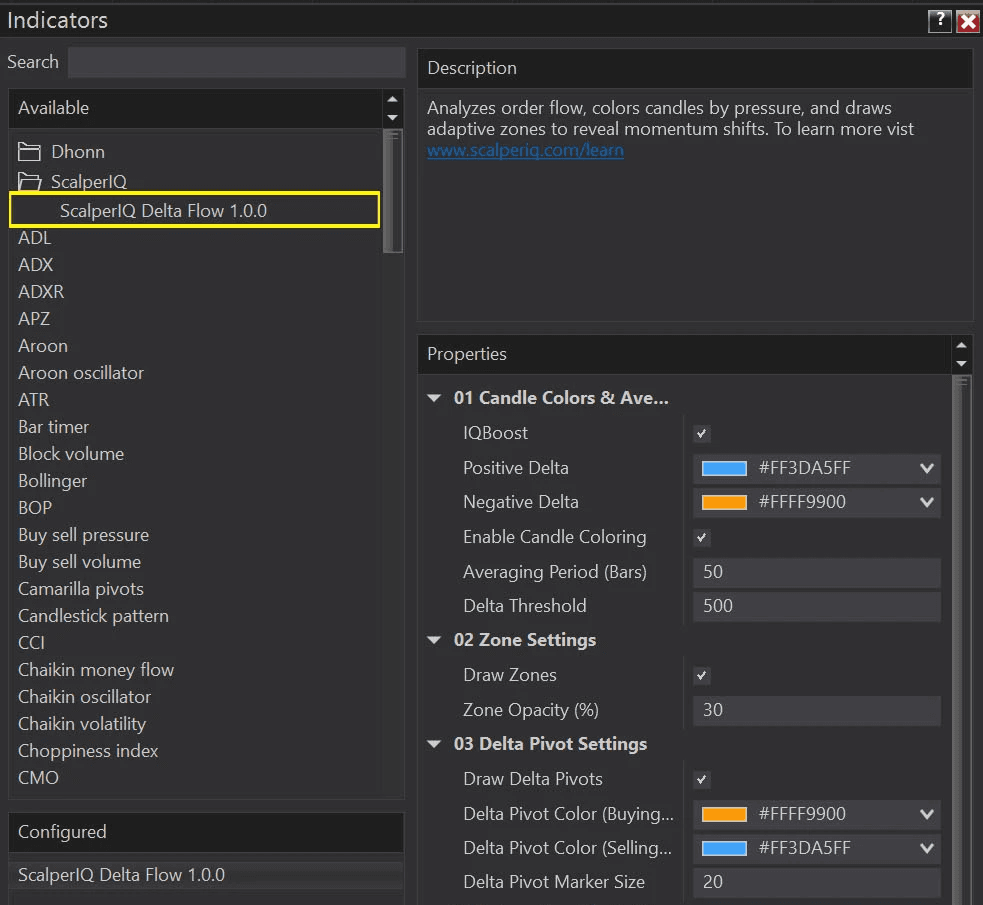

  1. Right-click the chart and select Indicators. Locate ScalperIQ Tick Engine in the left menu and double-click to add it. Then add your desired studies — Delta Flow, Phantom, Impact, or Excess Levels. Click Apply and OK to complete installation.
NinjaTrader Indicators panel — ScalperIQ

How To Install Updated Version

IMPORTANT. NinjaTrader caches the loaded ScalperIQ assembly. If you import a new version on top of the old one, NinjaTrader keeps running the cached copy — the update will appear to have no effect even though the import succeeded. You must remove the old assembly and restart NinjaTrader before importing the new version. Don't skip the restart — that's the step that actually clears the cache.

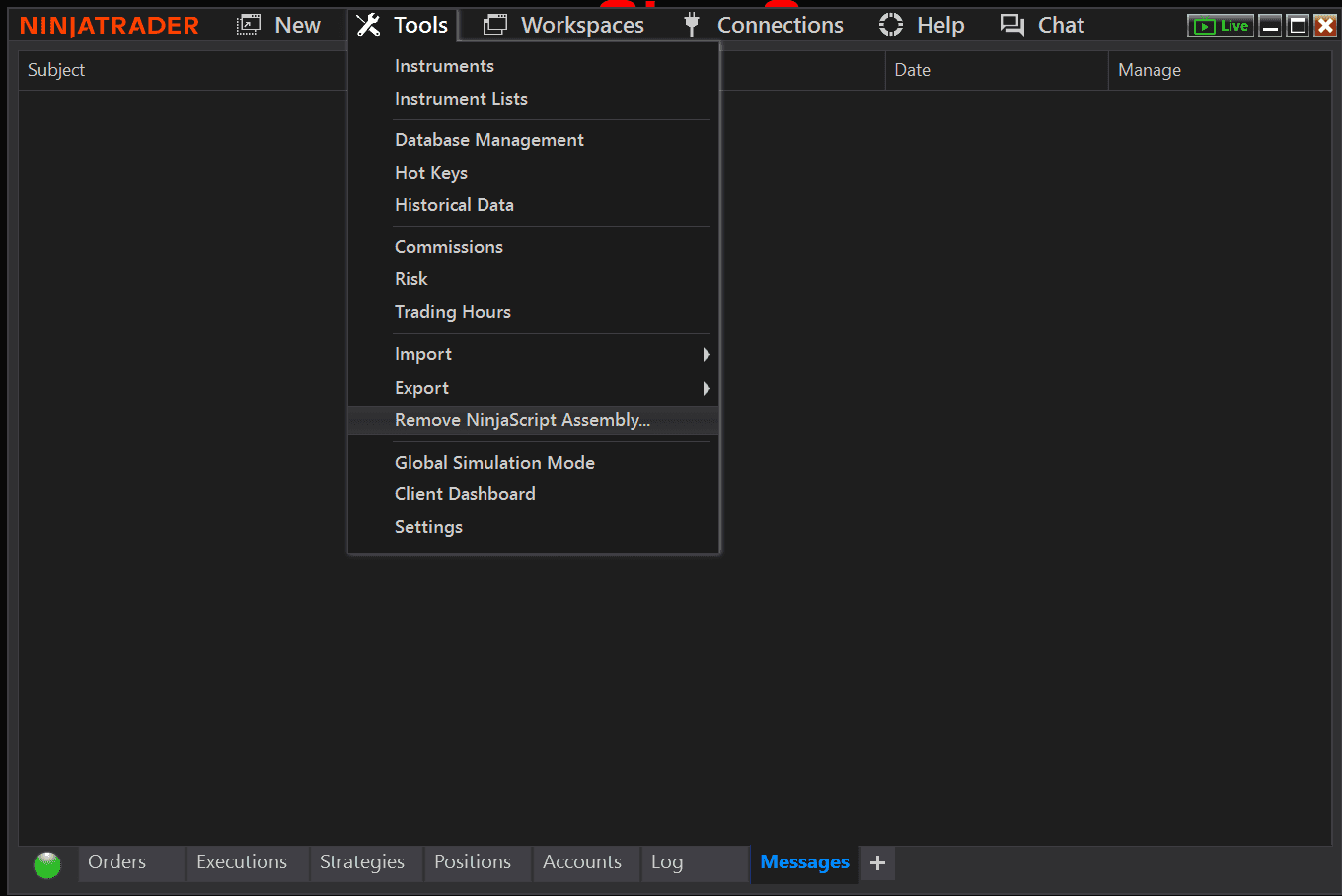

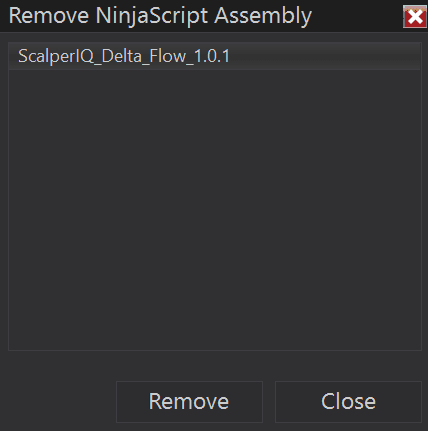

  1. Remove the old assembly. Navigate to Tools > Remove NinjaScript Assembly in the NinjaTrader Control Center. Select the outdated ScalperIQ version, click Remove, and wait for confirmation of successful removal.
Remove NinjaScript assembly Remove confirmation
  1. Restart NinjaTrader. Fully close and reopen NinjaTrader. This is what clears the cached assembly — the new version will not load correctly without it.

  2. Reinstall the new version. Follow the installation steps to import the updated ScalperIQ zip and re-add your studies.

Subscribers updating to 3.0: the first time 3.0 loads, it needs an internet connection. That first check updates your license file automatically; after that the usual offline allowance applies.

Getting Started

The ScalperIQ Tick Engine is the foundation of the ScalperIQ suite. It processes raw tick data and makes it available to each study on your chart. You must add the Tick Engine to your chart before adding any other ScalperIQ study.

Step 1: Add the Tick Engine

Right-click your chart and select Indicators. Locate ScalperIQ Tick Engine in the indicator list and double-click to add it. Click Apply and OK. The engine will begin loading historical tick data.

Step 2: Add Your Studies

Once the Tick Engine is loaded, add one or more studies from the same Indicators menu:

  • ScalperIQ Delta Flow — Candle coloring, delta zones, pivots, and exhaustion markers
  • ScalperIQ Phantom — Breakout escape detection via max trade size tracking
  • ScalperIQ Impact — Size imbalance detection with adaptive thresholds
  • ScalperIQ Excess Levels — Zones where aggression into a high or low was absorbed

Each study automatically connects to the Tick Engine on the same chart. If you add a study without the Tick Engine present, it will display a message asking you to add the engine first.

Step 3: Configure

The Tick Engine controls global settings like the color theme, RTH mode, and the Quick Settings Panel. Each study has its own settings for its specific visual outputs. See the individual study sections below for details.

NinjaTrader Indicators panel — ScalperIQ studies

Tick Engine

The ScalperIQ Tick Engine is the core data source for all ScalperIQ studies. It processes every tick on the chart and aggregates key metrics for each bar — including delta, maximum buy/sell trade sizes, and volume by price.

The Tick Engine must be added to your chart before any other ScalperIQ study. It also handles:

  • License validation — Your license is checked once by the engine. If valid, all studies are automatically authorized. A lifetime key is checked on your machine; a subscription is checked with the license server. See License Status on the Chart below.
  • Environment validation — The engine verifies you're on a supported futures instrument with a timeframe of 30 minutes or less.
  • Color theme management — When a custom theme is enabled on the engine, it overrides the color settings on all studies. If no theme is enabled, each study uses its own local color settings.
  • Quick Settings Panel — The engine provides an on-chart settings panel for adjusting visual settings without reloading data.

Settings

  • Use Custom Theme: Enables a predefined color theme applied across all ScalperIQ studies on the chart.
  • Theme: Selects the active theme (Vector, Classic, Ember, Pulse, Polar, Thermal, or Obsidian).
  • Show Quick Settings Panel: Enable to see the ScalperIQ Quick Settings panel on your chart for adjusting visual settings without reloading historic data.
  • Panel Position: Places the Quick Settings Panel in one of six positions on the chart, so it stays clear of your price action.
  • RTH Only (All Studies): Restricts analysis to Regular Trading Hours across all studies when enabled.

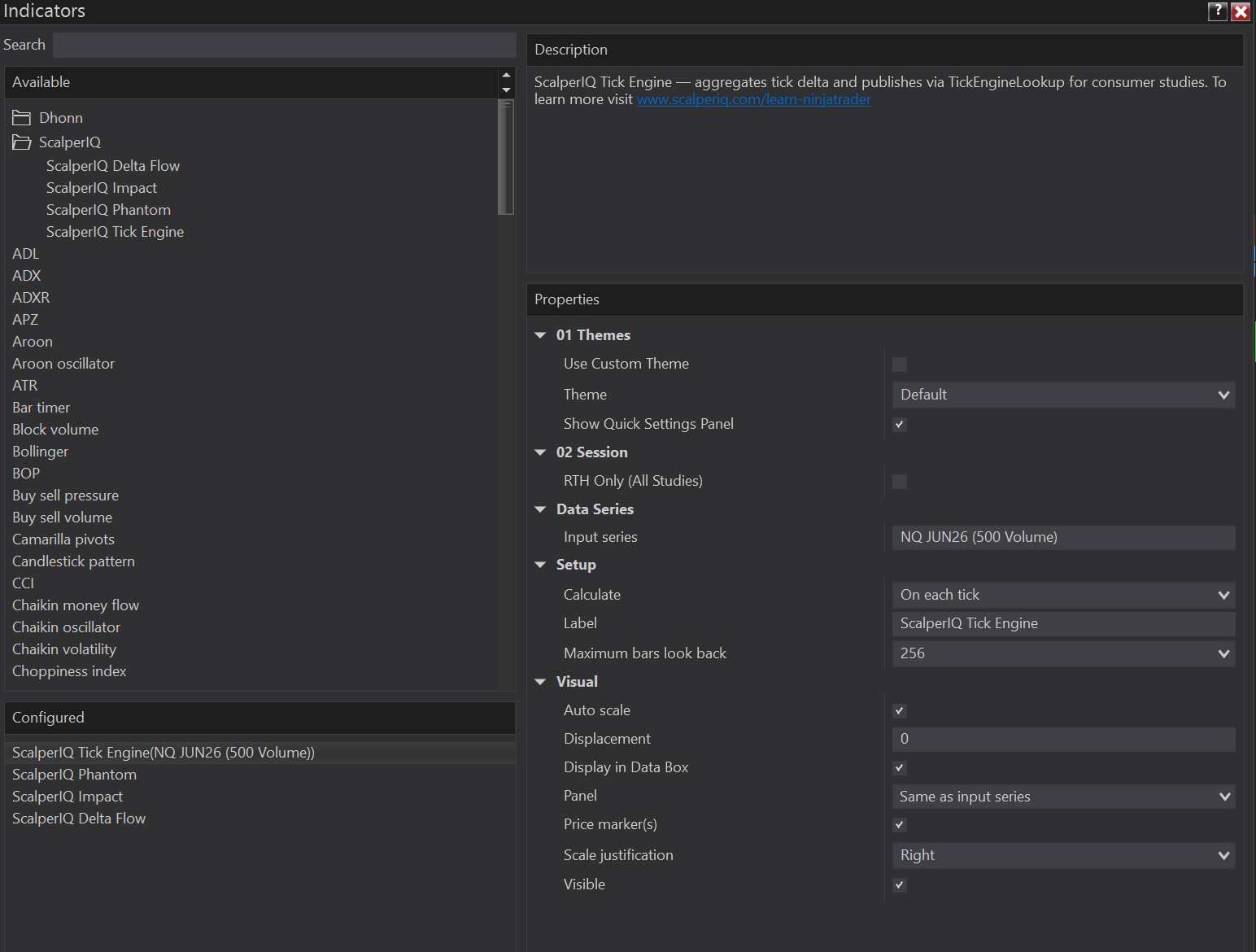

Tick Engine indicator settings

Quick Settings Panel

The Quick Settings Panel appears on your chart and provides quick access to the global theme, RTH toggle, and per-study settings without opening the indicators dialog. Use Panel Position above to place it where it stays clear of your price action.

Each study on the chart gets its own section. Delta Flow covers candle coloring, zones, pivots, exhaustion markers, session limits and RTH Only. Phantom, Impact and Excess Levels expose their RTH and overnight toggles and caps, so you can adjust which markers, levels and zones display without reloading data. A few settings live only in the Indicators dialog: Delta Flow's Candle Shading, Phantom's Max Bars per Leg, and Excess Levels' Prints Required in Run and Min Spacing.

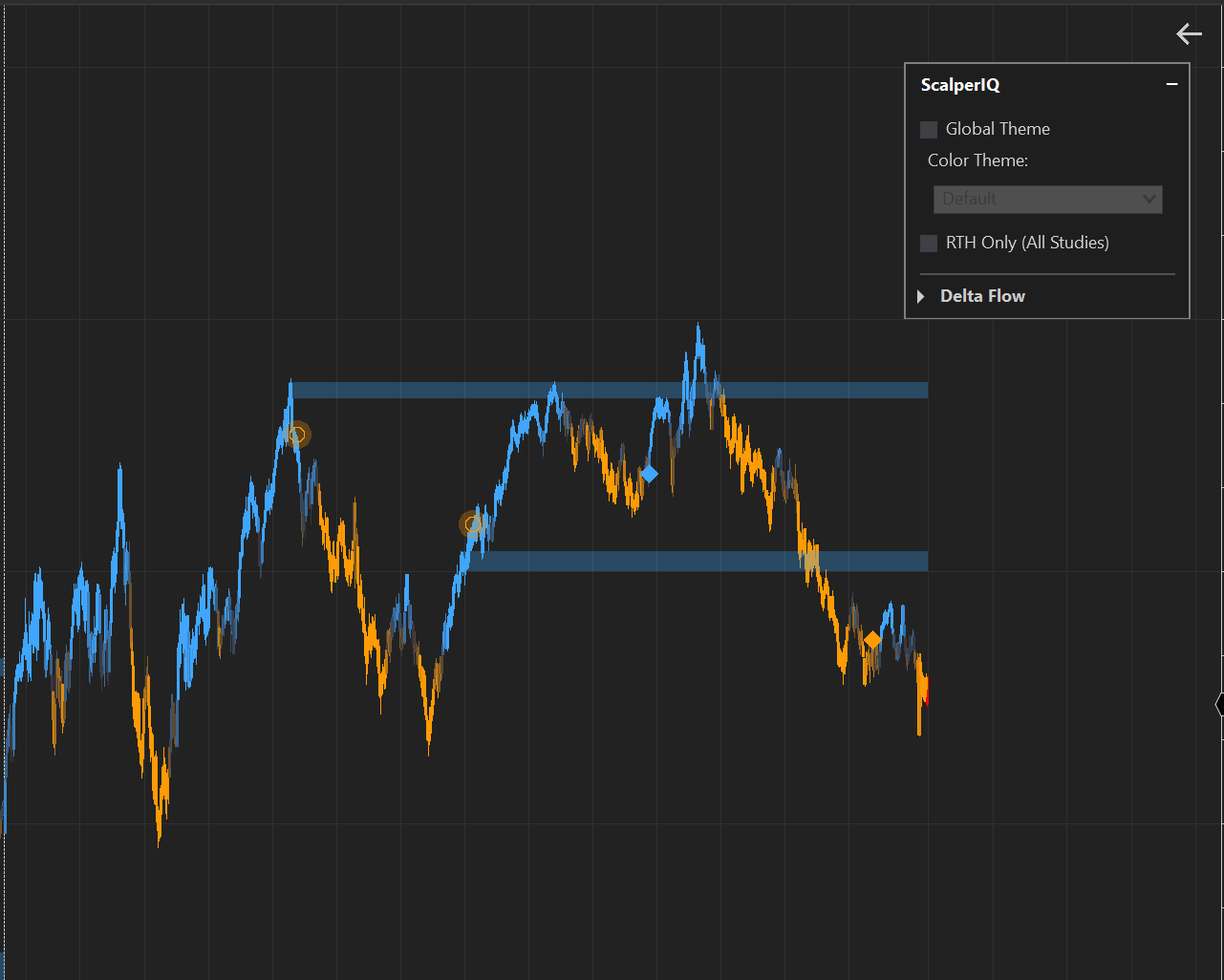

Quick Settings Panel on chart Quick Settings Panel close-up

License Status on the Chart

  • key #NNNN: With a lifetime key, the engine draws your key number in small grey text at the bottom-left of the chart (for example key #0137). It stays put through pan and zoom and cannot be hidden. Quote this number if you contact support. Subscriptions show no label.
  • "Verifying license…" Subscriptions only. Shown in orange in the middle of the chart when the license check has been waiting on the server for 30 seconds: the server could not be reached and there is no valid offline grace to fall back on. ScalperIQ keeps retrying on its own; check your internet connection, and the message clears once the check succeeds. Lifetime keys never show it, because they are checked on your machine and never contact the server.

Delta Flow

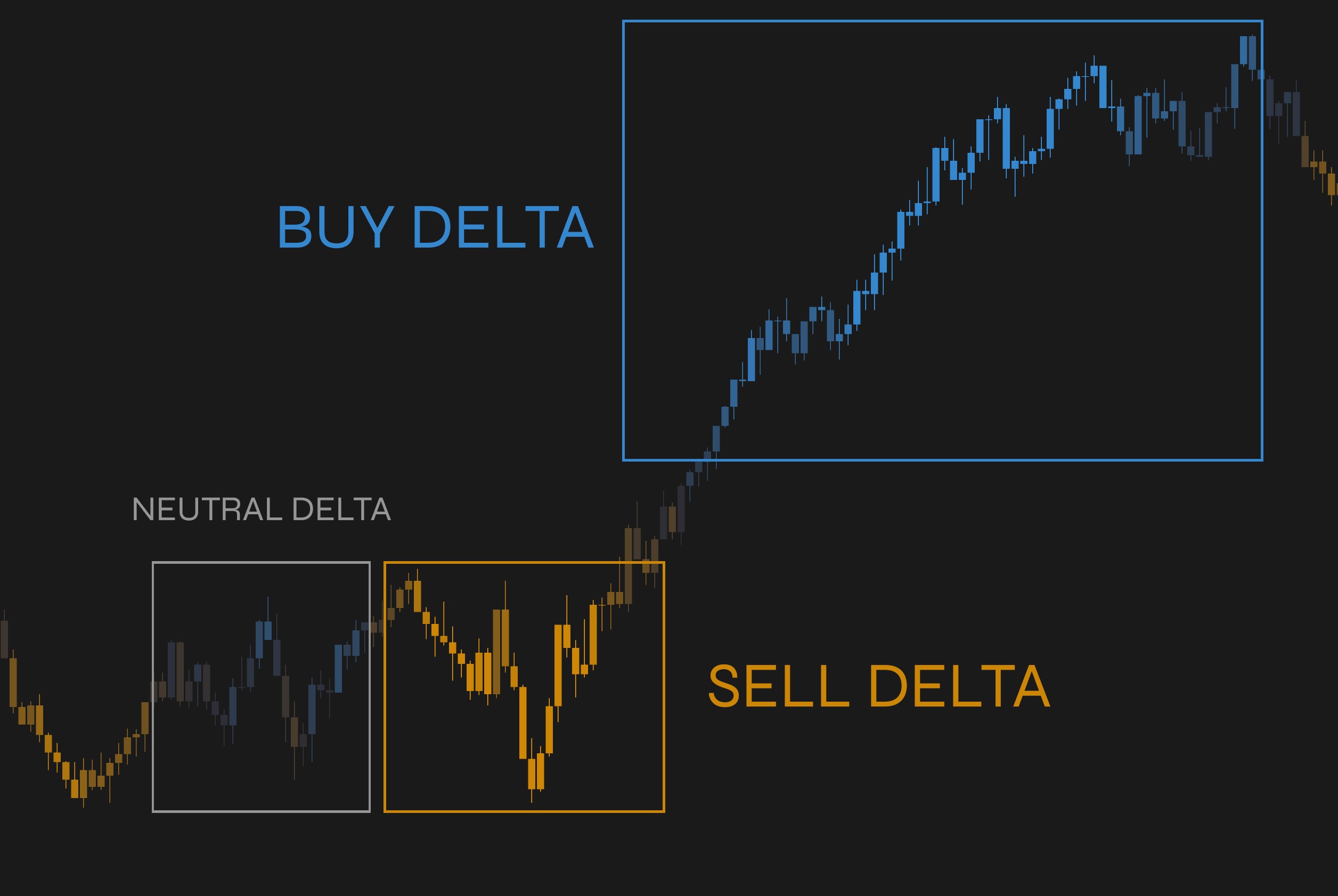

ScalperIQ Delta Flow visualizes changes in buying and selling pressure through candle coloring, delta pivot markers, exhaustion markers, and adaptive zone overlays. It reads bar-level delta data from the Tick Engine and applies its own analysis to highlight shifts in market control.

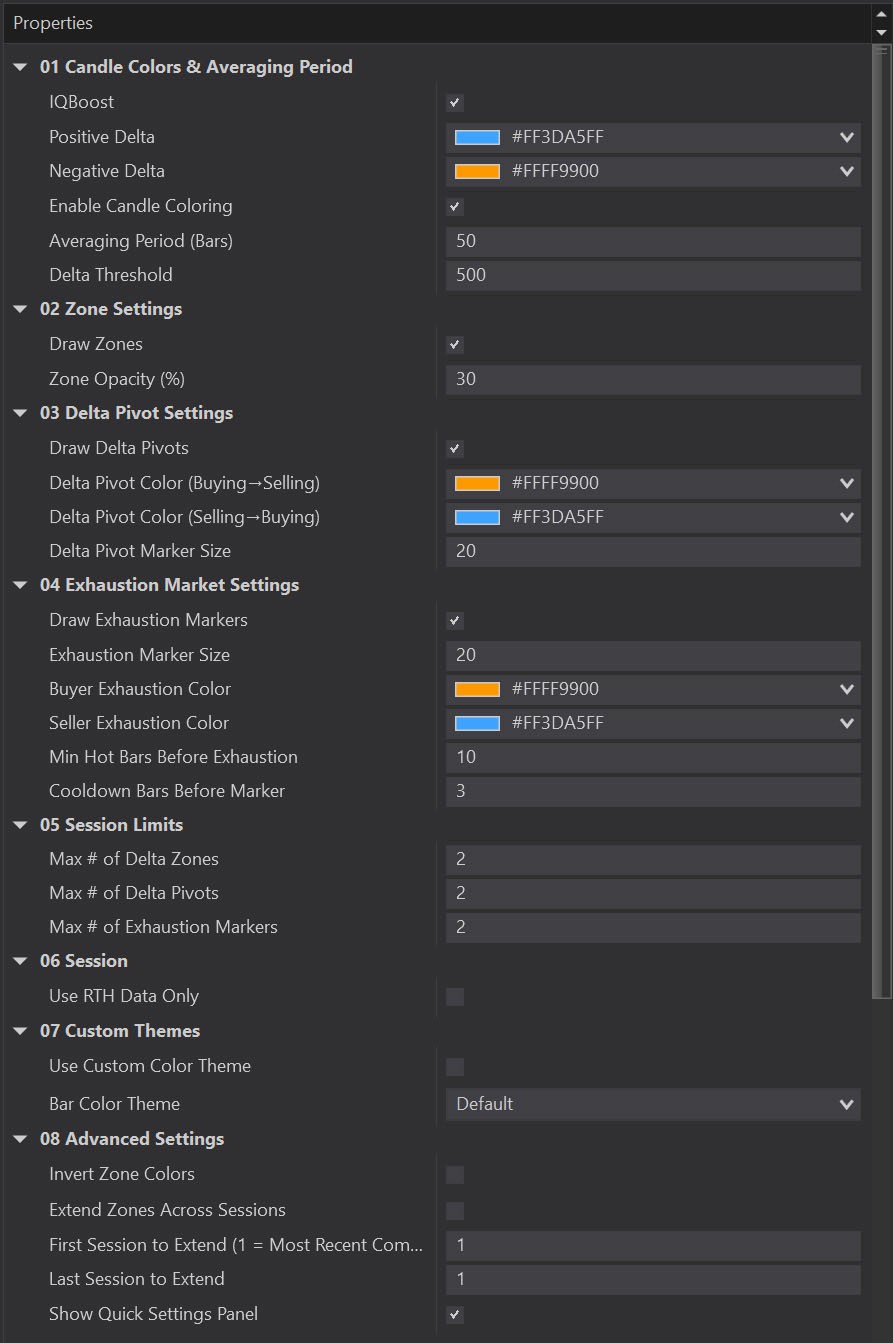

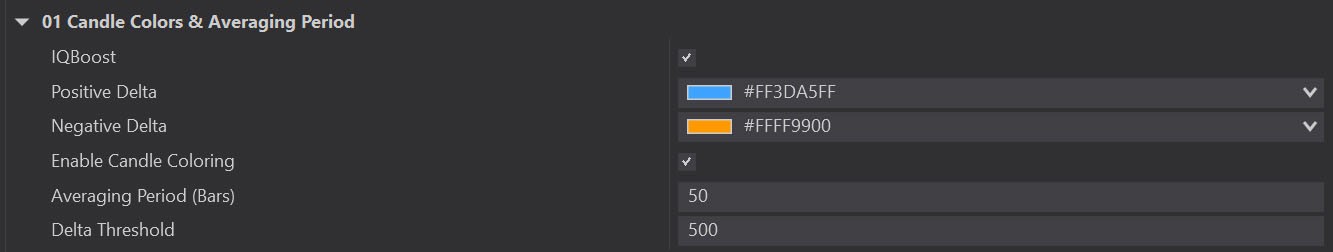

Candle Colors & Averaging Period

These parameters configure the core logic of delta measurement and visualization.

  • IQBoost: Enhances signal responsiveness by weighting price movement with delta intensity. This provides faster, more adaptive reactions to market shifts — though results may vary slightly between users due to local calculation differences. Default on.
  • Positive Delta Color: Defines the color used when delta is positive. This color represents buying aggression and may be overridden by the selected custom theme.
  • Negative Delta Color: Defines the color used when delta is negative. This represents selling aggression and may be overridden by the selected custom theme.
  • Enable Candle Coloring: When enabled, candles are color-coded based on the bar's delta value. This highlights whether the bar exhibited net buying or selling aggression. Default on.
  • Candle Shading: Chooses how candle color follows delta. Original (default) or Extremes Only — see below. Set it in the Indicators dialog; it is not on the Quick Settings Panel.
  • Averaging Period (Bars): Sets the number of bars used to calculate an average of delta. Short periods are more responsive, while longer periods reduce noise. Default 50, range 2–100.
  • Delta Threshold: Influences how aggressively candles are colored. In Original shading, most candles carry some tint: higher thresholds emphasize stronger delta values, while lower thresholds produce less of a gradient and a sharper split between buying and selling colors. In Extremes Only, the threshold is the line a candle must reach to take any color at all. Default 500, range 10–5000.

Candle Shading

The Candle Shading dropdown has two modes. Both are stateless: a candle's color depends only on its own delta and intensity, never on earlier bars.

  • Original (default): Each candle blends from neutral grey toward its buying or selling color in proportion to how close its delta deviation is to the Delta Threshold. Most candles carry some tint.
  • Extremes Only: Candles stay grey until delta deviation reaches the Delta Threshold. At that point the candle takes its full buying or selling color, and it goes back to grey the moment deviation drops below the threshold. Only the strongest bars are colored, so a colored candle is a reading on its own.

A new session always starts neutral. There is no percentage setting; the Delta Threshold is the only control for how often candles color in Extremes Only.

Tip: raise the Delta Threshold for Extremes Only. If too many candles are colored, raise it until only the bars that truly stand out take color. This matters most with IQBoost on: IQBoost amplifies delta intensity, so more bars reach any given threshold, and Extremes Only usually needs a noticeably higher Delta Threshold to stay selective.

Original:

Delta Flow candle shading, Original mode

Extremes Only:

Delta Flow candle shading, Extremes Only mode

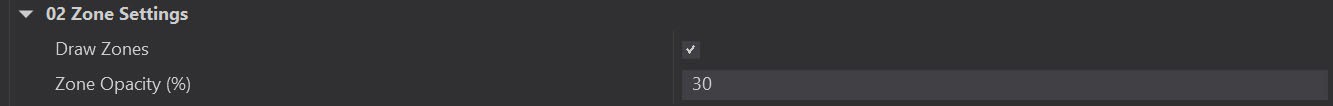

Zone Settings

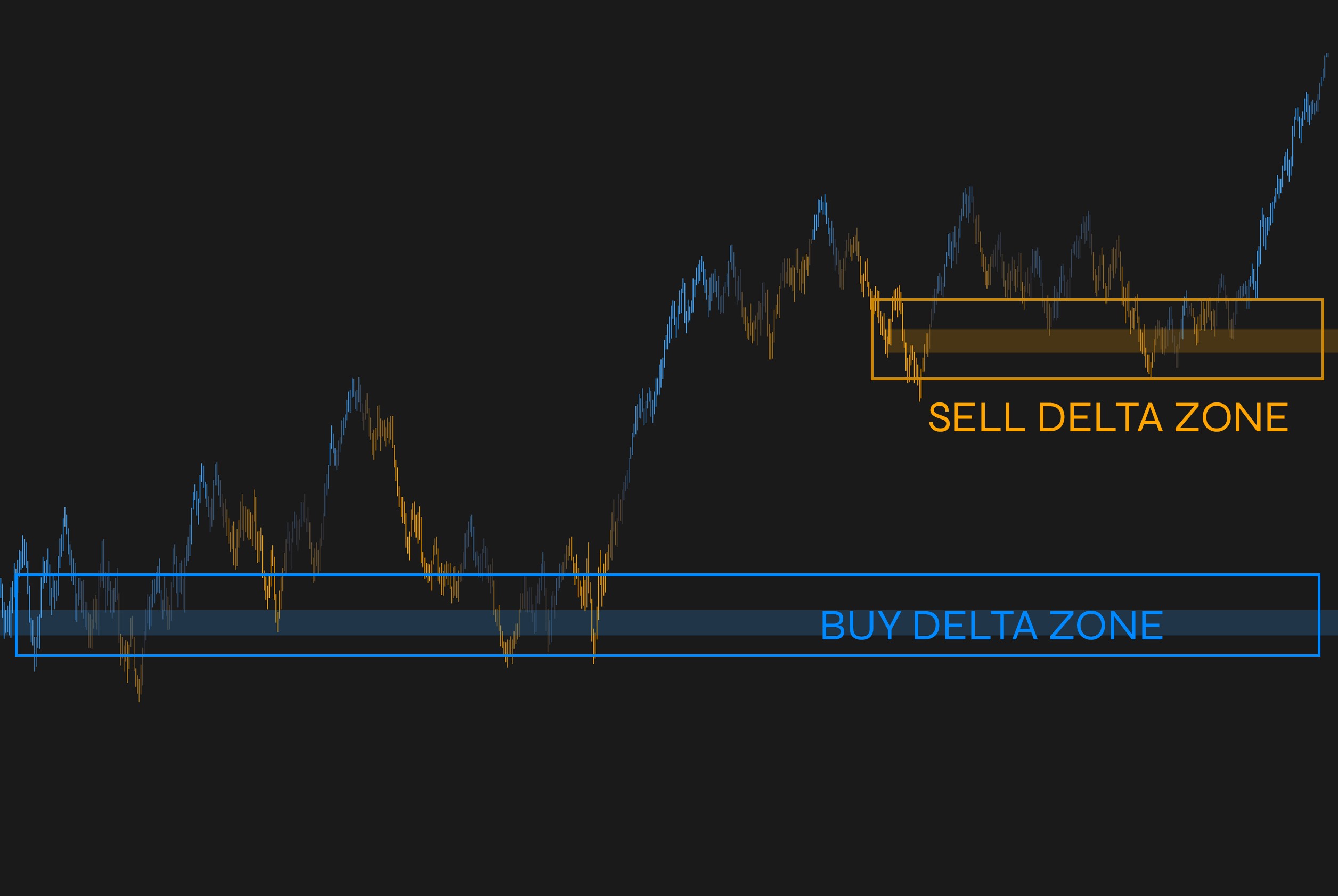

Controls the rendering of delta zones — areas where notable buying or selling pressure has occurred.

  • Draw Zones: Toggles the display of delta zones on the chart. Default on.
  • Zone Opacity (%): Adjusts the transparency of the drawn zones. Default 30, range 1–100.

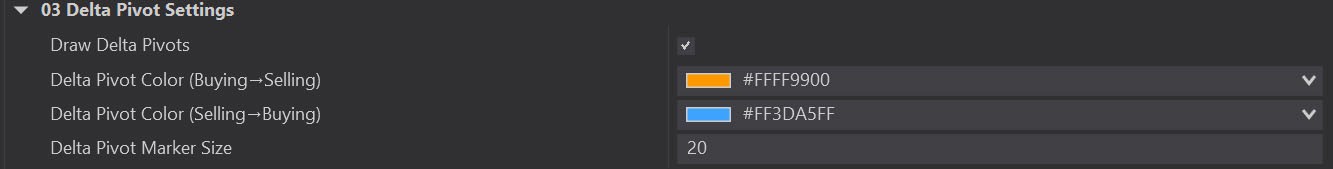

Delta Pivot Settings

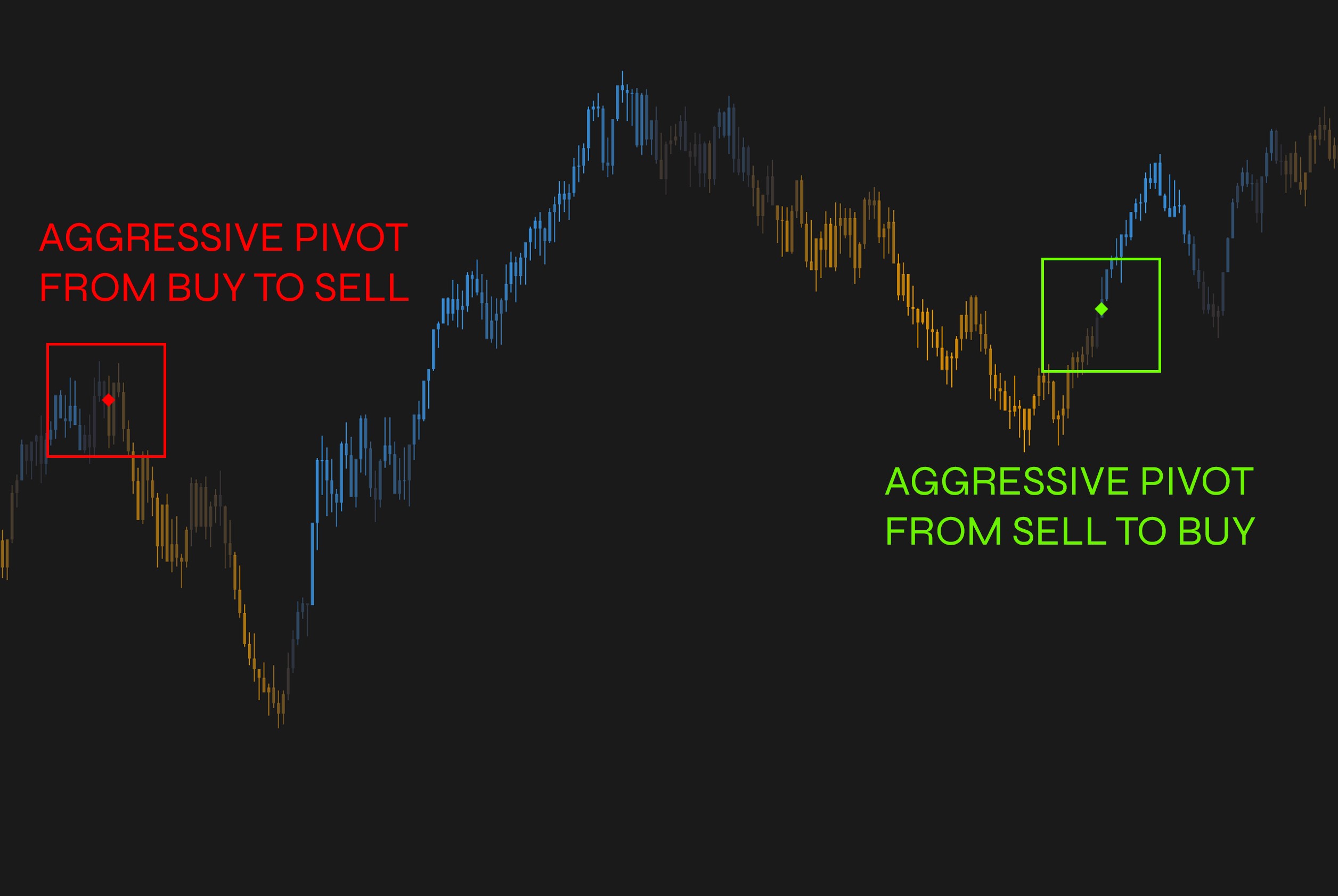

Delta pivots indicate locations where buying and selling aggression has flipped with intensity. These are not trade signals, but rather objective markers showing potential shifts in control.

  • Draw Delta Pivots: Enables the display of delta pivot markers. Default on.
  • Delta Pivot Color (Buying→Selling): Color used to mark transitions from buying to selling aggression.
  • Delta Pivot Color (Selling→Buying): Color used to mark transitions from selling to buying aggression.
  • Delta Pivot Marker Size: Controls the size of the pivot marker symbol. Default 20, range 5–50.

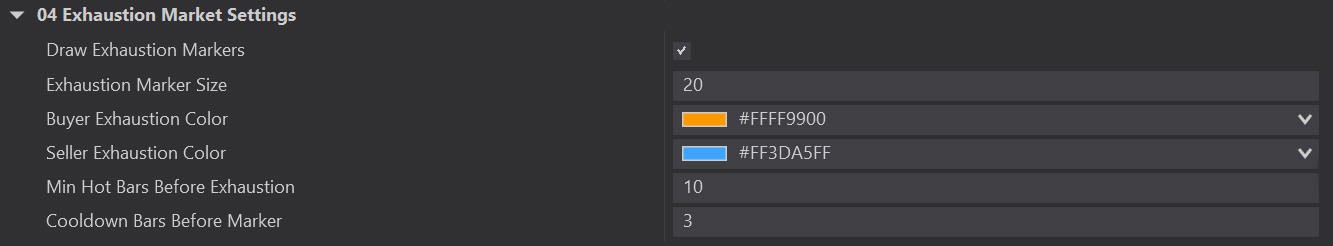

Exhaustion Marker Settings

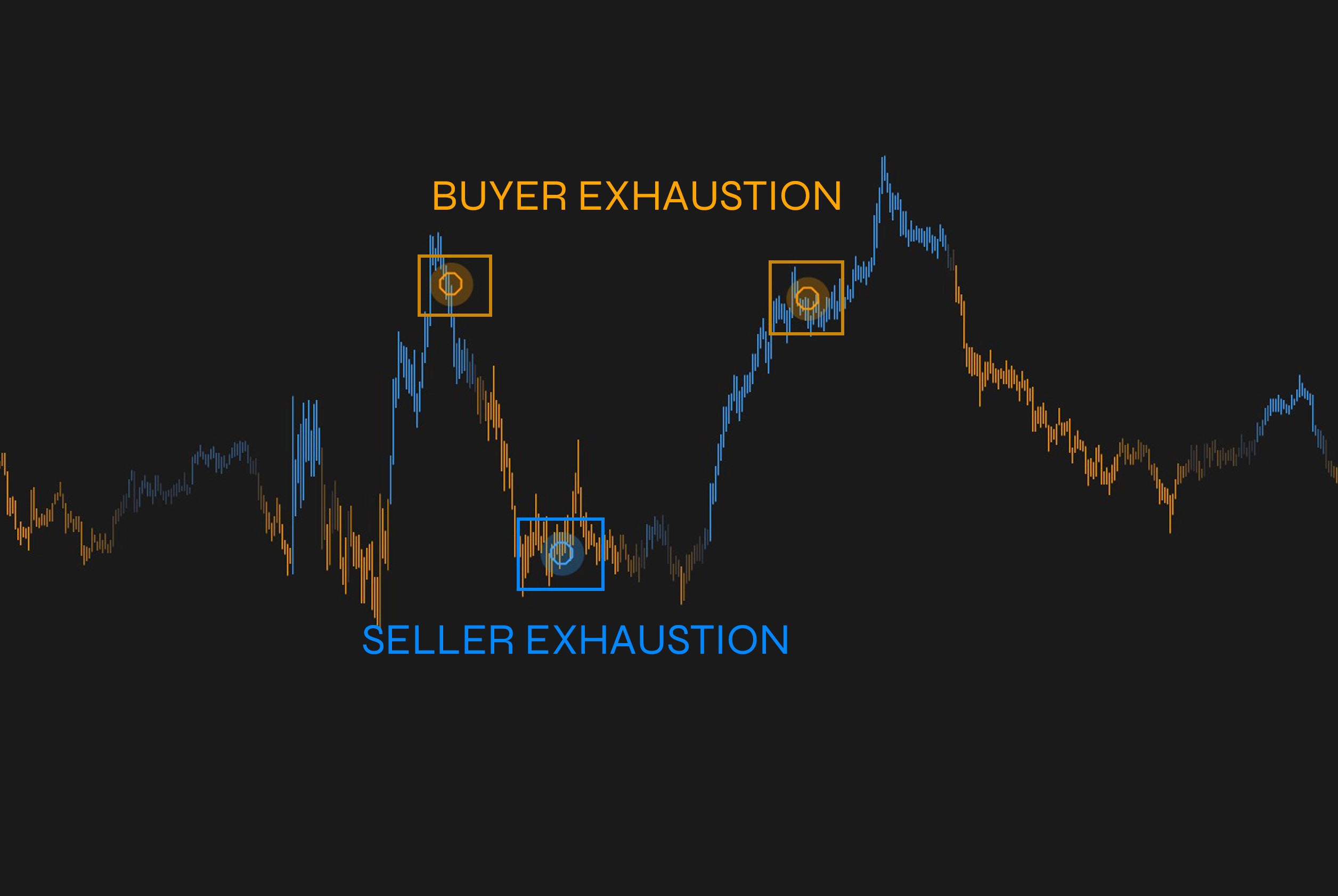

Exhaustion Markers act as early warning signals for potential trend reversals or pauses. They identify moments where a strong, high-momentum directional move (a sequence of "hot" bars) loses steam and enters a cooldown phase, suggesting that the aggressive buying or selling pressure driving the move has temporarily dried up.

  • Draw Exhaustion Markers: Toggles the visibility of the exhaustion indicators on your chart. Default on.
  • Exhaustion Marker Size: Adjusts the visual size of the exhaustion marker icon on the chart. Default 20, range 5–50.
  • Buyer Exhaustion Color: Selects the color for markers indicating that buying pressure has exhausted (typically at a potential high).
  • Seller Exhaustion Color: Selects the color for markers indicating that selling pressure has exhausted (typically at a potential low).
  • Min Hot Bars Before Exhaustion: Defines the minimum number of consecutive high-momentum bars required to validate a trend before checking for exhaustion. Default 10, range 1–20.
  • Cooldown Bars Before Marker: Sets how many lower-momentum bars must follow the trend to confirm the exhaustion event. Default 2, range 0–10 (new charts in 3.0; earlier versions defaulted to 3).

Usage: These markers are designed to spot "burnout" points where a price trend may be overextended. By highlighting where aggressive order flow momentum suddenly drops off after a sustained run, they help traders anticipate potential reversals or consolidation periods, avoiding the trap of chasing a move that is already running out of fuel.

Cooldown Bars Before Marker can be set to 0, which will make them print as soon as the "Hot Bar Sequence" is over for maximum responsiveness. This extra responsiveness comes at the expense of potential fake outs or false signals.

Session Limits

  • Max # of Delta Zones: Caps zones per session. Default 2, range 1–10.
  • Max # of Delta Pivots: Upper limit per session. Default 2, range 1–10.
  • Max # of Exhaustion Markers: Caps markers per session. Default 2, range 1–10.

Session Time Settings

  • Use RTH Data Only: Restricts analysis to RTH if enabled; includes full-session data when disabled. Default off.

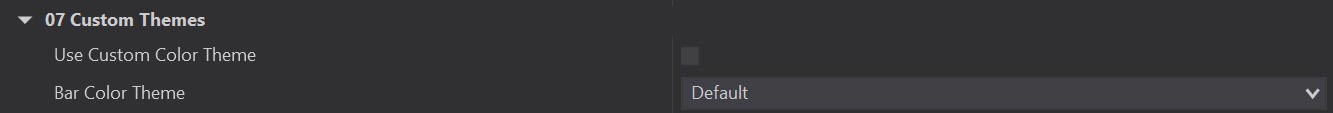

Custom Themes

  • Use Custom Color Theme: Enables a predefined color theme.
  • Bar Color Theme: Selects the theme. When enabled, overrides individual color settings.

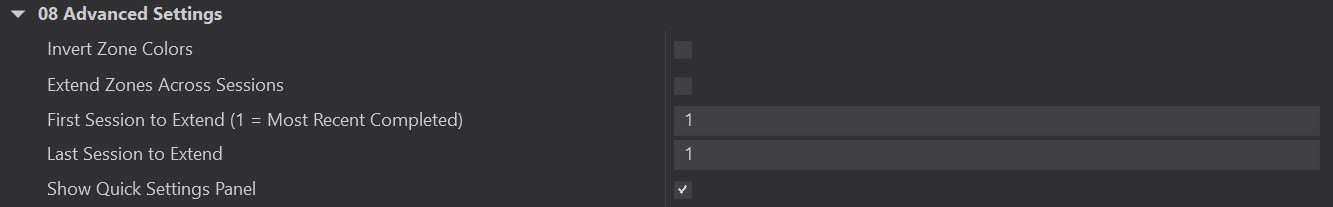

Advanced Settings

  • Invert Zone Colors: Invert your zone colors so that buy zones appear as a sell color and sell colors a buy. This is a visual change only — the zones are still created by aggressive buying or selling.
  • Extend Zones Across Sessions: Allows delta zones to persist beyond the session in which they were formed. Default off.
  • Nearest Session (1 = Most Recent): Increasing this number will show you previous zones extended into the current session starting with zones from 1 (previous session). Default 1, range 1–15.
  • Furthest Session: Increasing this number will cut out previous session zones. Matching Nearest Session will only extend zones from that session. I.e. a setting of 3 in both will only extend zones from 3 sessions ago. Default 1, range 1–15.

The on-chart Quick Settings Panel is turned on from the Tick Engine (Show Quick Settings Panel), not from Delta Flow. See Tick Engine.

Phantom

ScalperIQ Phantom identifies potential failed breakouts by detecting moments where price pushes to new extremes without order flow confirmation. When price extends beyond its range but delta does not support the move, Phantom marks it with a bubble — a visual cue that the breakout may lack conviction and a reversal could follow.

  • Upper escapes (bubble above bar): Price pushed to a new extreme high, but buying pressure did not confirm the move
  • Lower escapes (bubble below bar): Price pushed to a new extreme low, but selling pressure did not confirm the move

Escape Settings

  • Max RTH Markers Per Session: Limits the number of escape bubbles displayed during Regular Trading Hours. Default 5, range 1–20.
  • Min Spacing (Minutes): Minimum time between escape markers to prevent clustering. Default 15, range 0–120.
  • Marker Opacity (%): Controls the transparency of escape bubbles on the chart. Default 25, range 5–100.
  • Upper Escape Color: Color of bubbles drawn above bars for upper breakout escapes.
  • Lower Escape Color: Color of bubbles drawn below bars for lower breakout escapes.

Session Marker Sets

Regular Trading Hours and overnight markers are ranked separately, each with its own cap, so overnight activity never uses up your Regular Trading Hours slots.

  • Show RTH Markers: Displays escape markers detected during Regular Trading Hours. Default on.
  • Show Overnight (ETH) Markers: Displays escape markers detected outside Regular Trading Hours. Default on.
  • Max ETH Markers Per Session: Limits the number of escape bubbles displayed overnight. Default 5, range 1–20.

Overnight markers use a lightened version of your Upper and Lower Escape colors automatically, so there are no separate colors to set.

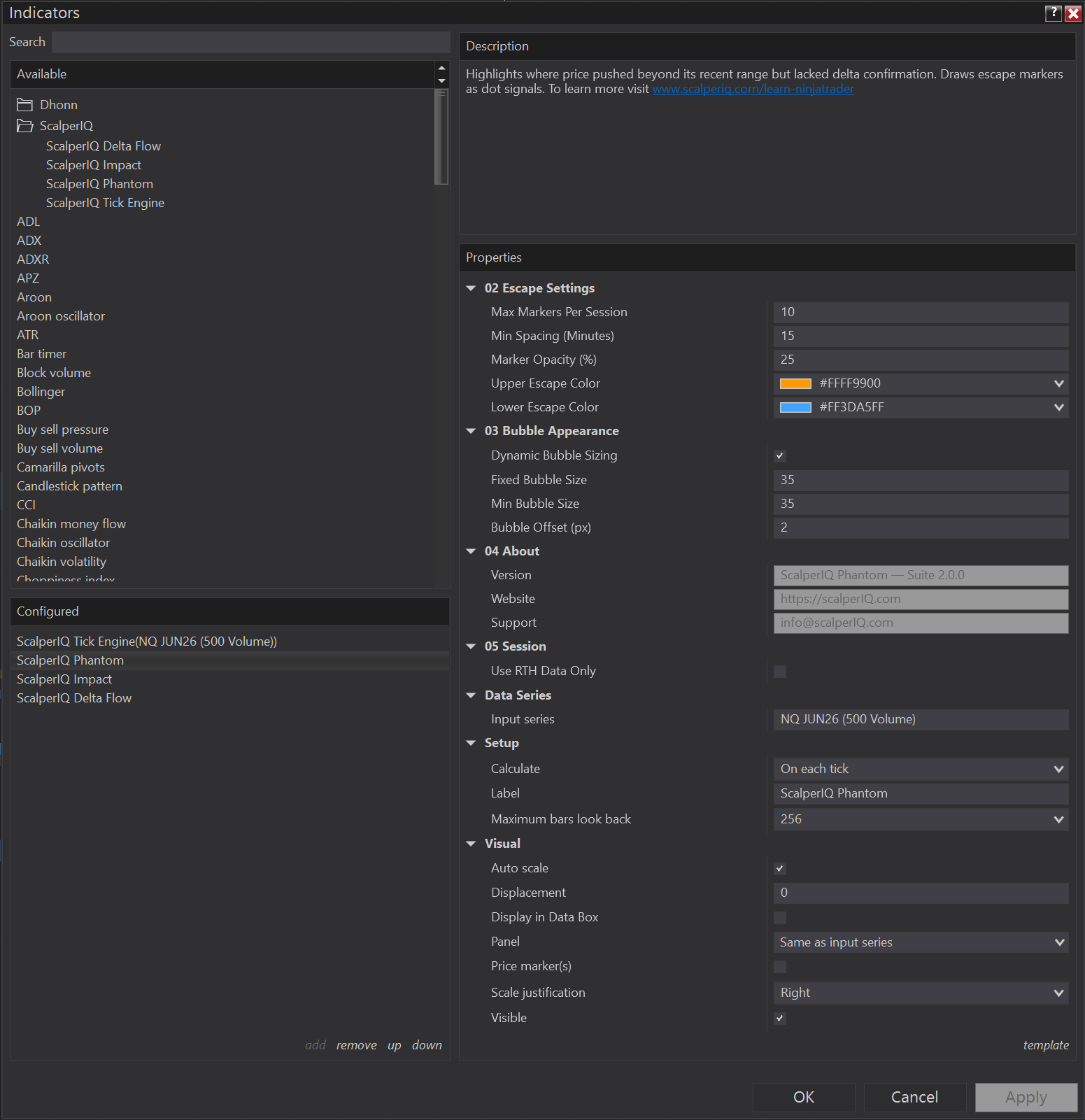

Phantom indicator settings

Episodes and Max Bars per Leg

Phantom scores one escape per leg, not one per bar. When price pushes beyond the band without delta confirming it, that opens an episode on that side. The episode stays open while the leg continues, and its marker is drawn once, on the bar where the episode opened, sized by the largest escape in the leg. Markers do not walk along the move.

An episode closes when:

  • price trades back through the level the leg first broke, or
  • the leg runs for Max Bars per Leg bars, or
  • the session ends.

When an episode closes, the next escape on that side can open a new one.

The detection band also resets on an escape: it moves to the escape bar's extreme, the same way a snap would. A continuing push then registers only its incremental escapes, instead of every bar being measured against a stale band left at the start of the leg.

  • Max Bars per Leg: Maximum length of one episode, in bars. Default 30, range 5 to 200. Found in the Detection group of the Indicators dialog; it is not on the Quick Settings Panel. Without a cap, a trend day that never retraces would be one marker all day. Changing it reloads the indicator and recomputes it from the first loaded bar.

A bubble's size is fixed when it is drawn. Later bars do not resize it, and reloading the chart draws it at the same size.

One Phantom bubble on a trend leg

Bubble Appearance

  • Dynamic Bubble Sizing: When enabled, bubble size scales with the magnitude of the escape. Default on.
  • Fixed Bubble Size: The base size of escape bubbles when dynamic sizing is disabled. Default 35, range 1–50.
  • Min Bubble Size: The minimum bubble size rendered, preventing bubbles from becoming too small. Default 35, range 1–50.
  • Bubble Offset (px): Controls the vertical distance between the bubble and the bar. Default 2, range 0–20.

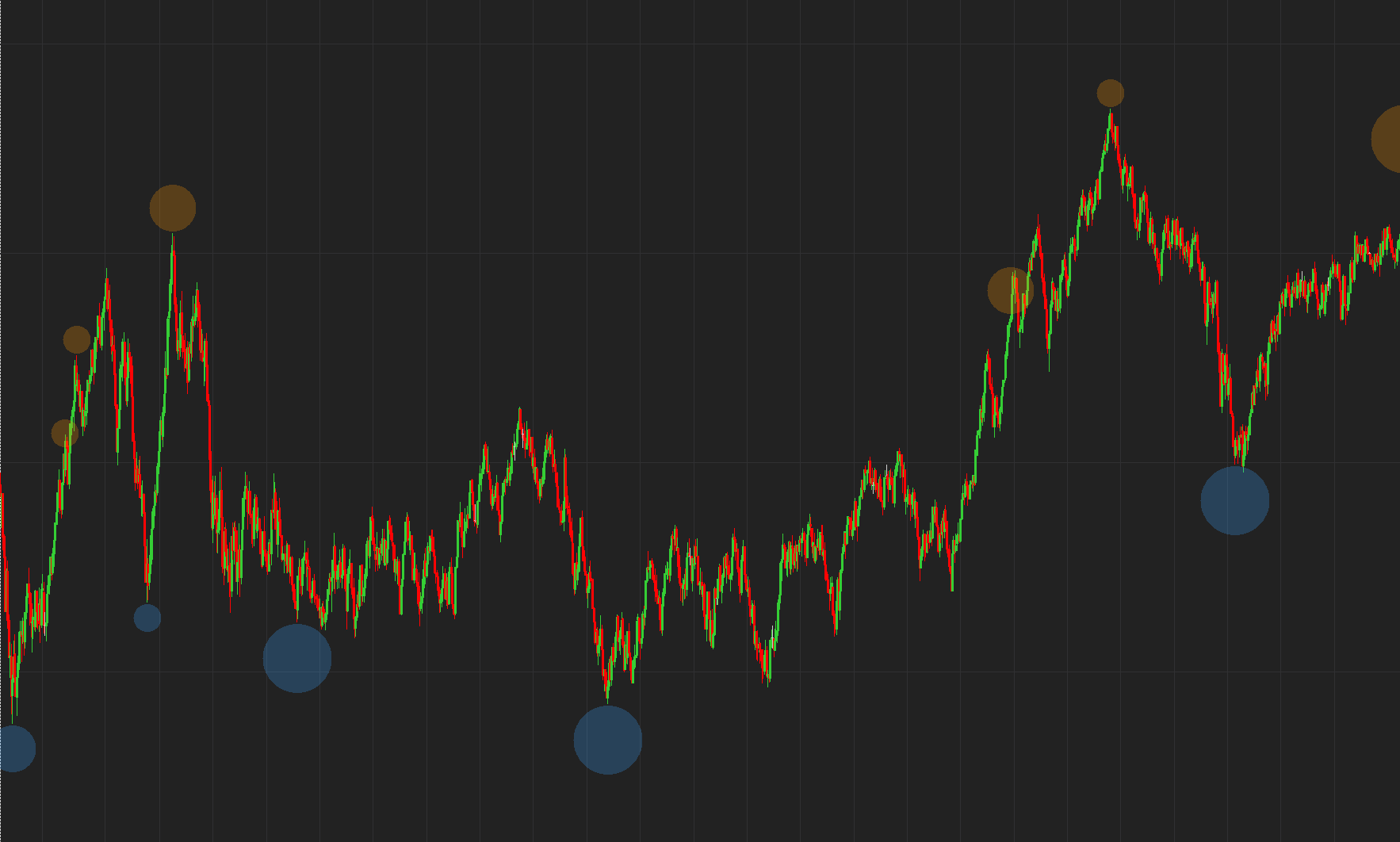

Phantom escape bubbles on chart

Impact

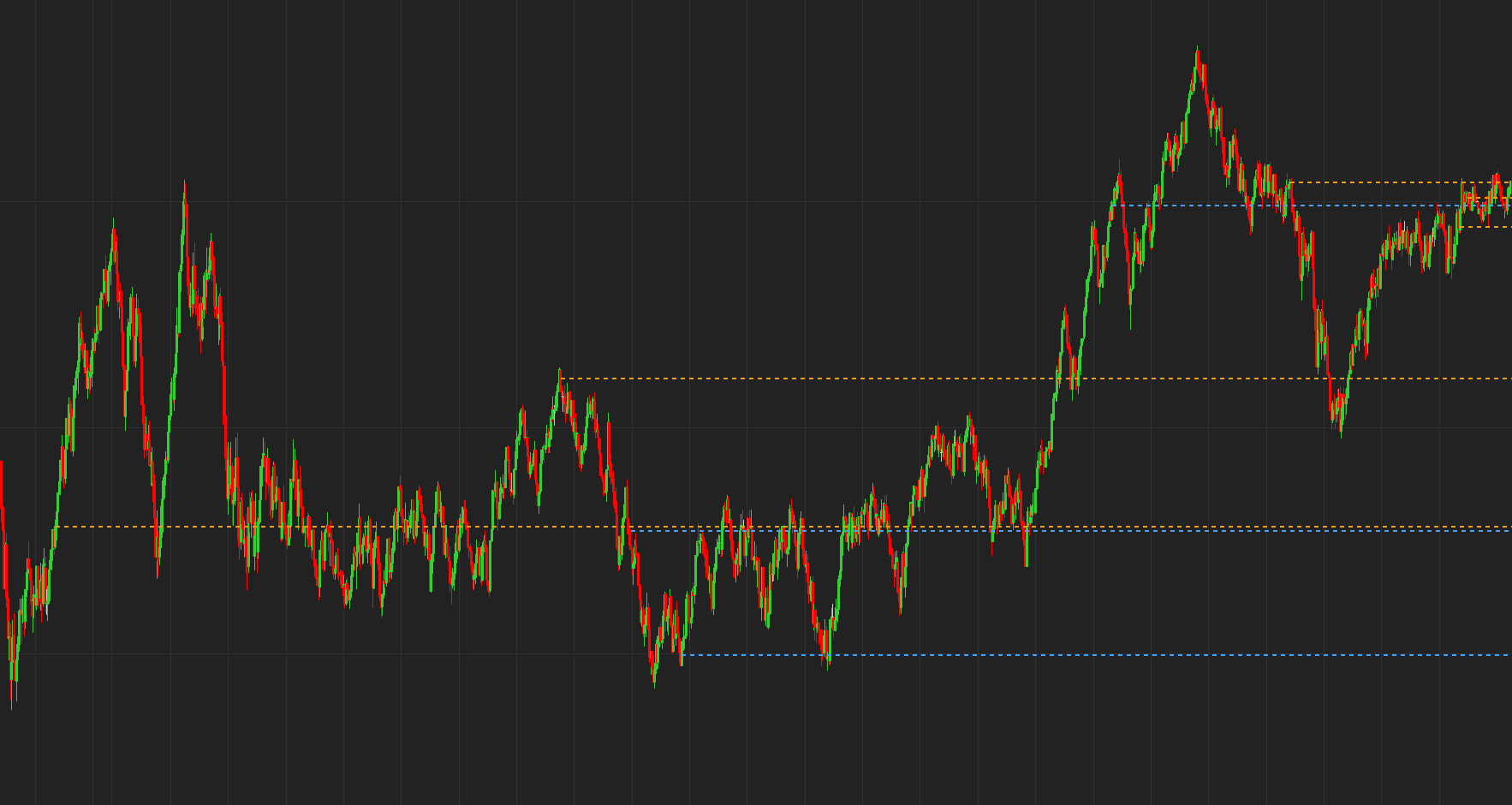

ScalperIQ Impact marks price levels where unusually large trades occurred relative to normal session activity. When detected, Impact draws a dashed horizontal line at that price, giving you a visual reference for where significant participation entered the market.

  • Buy imbalance levels mark where an outsized buy trade occurred
  • Sell imbalance levels mark where an outsized sell trade occurred

These levels can act as reference points for potential support, resistance, or areas of interest.

Zone Settings

Regular Trading Hours and overnight levels are ranked separately, each with its own cap, so overnight activity never uses up your Regular Trading Hours slots.

  • Show RTH Levels: Displays imbalance levels detected during Regular Trading Hours.
  • Max RTH Levels on Chart: Limits how many Regular Trading Hours levels display at once.
  • Show ETH Levels: Displays imbalance levels detected outside Regular Trading Hours.
  • Max ETH Levels on Chart: Limits how many overnight levels display at once.
  • Extend ETH Levels Through RTH: Carries overnight levels forward into the cash session so you keep them as reference.
  • Level at Trade Price: When enabled, draws the level at the exact price where the outsized trade occurred.

Display

  • Line Width: Controls the thickness of imbalance level lines.
  • RTH Buy Imbalance Color: Color of levels drawn for large buy trade imbalances.
  • RTH Sell Imbalance Color: Color of levels drawn for large sell trade imbalances.

Overnight levels use a lightened version of these colors automatically, so there are no separate colors to set.

Impact indicator settings

Advanced

  • Extend Across Sessions: Allows imbalance levels to persist beyond the session in which they were formed.
  • Nearest Session (1 = Most Recent): Sets the most recent session from which to extend levels.
  • Furthest Session: Sets the oldest session from which to extend levels.
Impact imbalance levels on chart

Excess Levels

ScalperIQ Excess Levels marks the prices where one side kept paying up and could not get through. When buyers lift offers into a high, or sellers hit bids into a low, and price goes nowhere, that effort is being absorbed. The study draws the trigger candle's range as a zone that extends forward, so you can see where aggression arrived and was met.

Excess Levels is a reference-level study. It does not tell you which way price will go next. Treat a zone as a place to watch how price behaves when it returns, not as an entry signal. It needs the Tick Engine on the same chart.

What triggers a zone

A zone appears when a short run of recent bars all show the same pattern at the same end of their range:

  • The volume point of control (the price with the most volume) sits at the top or bottom of the bar, not in the middle.
  • Price is going nowhere across the run: the run is a stall, not a march.
  • The prints cluster around one level, not a slope.
  • Aggression runs into that end: buying into the high, or selling into the low.
  • Price is stretched away from the session VWAP.

The study fires on the bar that completes the count, and that bar must be one of the qualifying prints. Nothing is drawn behind it. The zone starts at the trigger candle and projects forward only, so an existing zone never moves and never repaints. Bars at the start of each session cannot trigger while the VWAP spread is still warming up, and the chart needs at least 20 completed bars.

A bearish zone (a ceiling) uses the sell color and is solid along its top edge. A bullish zone (a floor) uses the buy color and is solid along its bottom edge. That solid edge is the level. The fill fades away from it.

Calibrated symbols

The rule is calibrated on NQ/MNQ and ES/MES, each with its own set of thresholds. Any other symbol still draws zones, using the NQ thresholds, and shows a line on the chart: "Excess Levels: calibrated for NQ/MNQ and ES/MES - [symbol] is uncalibrated". Read zones on those symbols as unvalidated.

On a chart with fewer than 20 completed bars the study draws nothing and says why: "Excess Levels: needs 20 completed bars, chart has N - load more history". When both lines apply they share one line, separated by " | ".

General Settings

Regular Trading Hours and overnight zones are ranked separately, each with its own cap, so overnight activity never uses up your Regular Trading Hours slots.

Regular Trading Hours Zones

  • Show RTH Zones: Displays zones detected during Regular Trading Hours (default on).
  • Max RTH Zones per Session: Caps zones per session (default 4, range 1–20).
  • RTH Bearish Zone Color: Color for ceilings.
  • RTH Bullish Zone Color: Color for floors.

Overnight (ETH) Zones

  • Show ETH Zones: Displays zones detected outside Regular Trading Hours (default on).
  • Max ETH Zones per Session: Caps overnight zones (default 2, range 1–20).
  • Extend ETH Zones Through RTH: Carries overnight zones forward into the cash session as reference (default on).

Overnight zones use a lightened version of your RTH colors automatically.

Display

  • Zone Opacity (%): Peak fill density at the solid edge (default 25, range 5–100). The solid edge stays at full weight.
Excess Levels settings in the Indicators dialog

Detection, Selection and Projection

These are groups 04 to 06 in the Indicators dialog.

  • Prints Required in Run: How many qualifying bars the run needs. Default 3, range 2 to 5. Higher is stricter and gives fewer zones. The window the study looks across follows this number automatically (prints plus 3), so there is no second setting to keep in step. Changing it recomputes the study from the first loaded bar.
  • Min Spacing (minutes): Minimum time between zones (default 15, range 0–120), to keep one event from drawing several boxes.
  • Extend Across Sessions: Carries zones from earlier sessions into the current one (default off).
  • Nearest Session (1 = Most Recent) and Furthest Session: Which earlier sessions to carry forward (default 1 each, range 1–100). The Quick Settings Panel offers 1–15; the Indicators dialog allows up to 100.

Every other threshold in the rule is fixed.

On the Quick Settings Panel, the Excess Levels section has the RTH and ETH toggles and caps, the two zone colors, Extend ETH Through RTH, Zone Opacity and the forward-projection settings. Prints Required in Run and Min Spacing are in the Indicators dialog only.

Reading a zone

On NQ, repeated bars that put their volume POC at the high while buyers lift offers and price stalls produce a bearish zone anchored on the trigger candle. The use is the return trip: when price comes back to the solid edge later in the session, you can see how it reacts at a level where aggression already failed once.

ES works the same way. ES bars touch far fewer price levels than NQ bars, so ES zones are narrower in points, and the ES thresholds are held in their own row for that reason. MES trades the same ladder as ES and uses the ES row.

Bearish and bullish Excess zones on an NQ chart

Custom Themes

Custom themes apply a consistent color scheme to candle and marker rendering across all ScalperIQ studies. When enabled, manual customization of individual color parameters is disabled. Themes are set on the Tick Engine. When enabled, the theme overrides individual color settings on all studies. If no theme is enabled, each study uses its own local color settings.

  • Use Custom Color Theme: Enables use of a predefined theme.

  • Bar Color Theme: Selects a theme from available options:

  • Vector - Neon Green & Purple

  • Classic - Green & Red

  • Ember - Orange & Pink

  • Pulse - Blue & Orange

  • Polar - Blue & Pink

  • Thermal - Purple & Orange

  • Obsidian (for light colored chart backgrounds) - Blue & Red

How To Interpret Signals

ScalperIQ highlights delta shifts and order flow dynamics that reflect underlying changes in market microstructure. The following signals provide visual cues for changes in buying and selling pressure across the ScalperIQ suite.

Candle Colors

Candles are colored based on delta pressure values. This allows for quick visual assessment of whether a bar was dominated by buyers or sellers.

  • Positive Delta Candles: Reflect net buying pressure.
  • Negative Delta Candles: Reflect net selling pressure.
Candle colors interpretation

Delta Pivots

Delta pivots identify moments where aggressive market control changes hands. These are not entry or exit signals, but rather context markers to help traders assess the underlying order flow activity.

  • Buying to Selling Pivots: Indicates a dramatic shift from net buying to selling.
  • Selling to Buying Pivots: Indicates a dramatic shift from net selling to buying.
Delta pivots interpretation

Delta Zones

Zones are drawn where delta intensity has reached a significant threshold. These zones often serve as areas of interest for potential support, resistance, or price reversion.

It is important to note that when a zone formed from aggressive selling is later reclaimed by buyers (i.e., price moves above the zone), it may subsequently act as support, and vice versa for a buy zone reclaimed by sellers.

These contextual shifts can offer additional insight into the evolving balance of market pressure.

Delta zones interpretation

Exhaustion Markers

Exhaustion Markers act as early warning signals for potential trend reversals or pauses. They identify moments where a strong, high-momentum directional move (a sequence of "hot" bars) loses steam and enters a cooldown phase, suggesting that the aggressive buying or selling pressure driving the move has temporarily dried up.

Exhaustion Markers are contextual signals, not trade triggers on their own. Their primary role is to alert you that a strong directional move may be losing participation, increasing the likelihood of a pause, pullback, or rotation rather than immediate continuation.

Used in context with other levels a marker suggests that aggressive buyers or sellers are no longer pressing, and that continuation through the level may be less likely without consolidation or a reset in momentum or that a potential reversal may be imminent.

Exhaustion markers interpretation

Impact Levels

Impact levels mark prices where outsized trade activity occurred. Similar to delta zones, these levels can act as areas of interest for potential support or resistance. When a sell imbalance level is reclaimed by buyers, it may act as support — and vice versa for buy imbalance levels reclaimed by sellers.

Impact imbalance levels on chart

Phantom Escapes

Phantom bubbles appear when price pushes to new extremes without delta confirmation — meaning the breakout lacks order flow conviction. These escape signals are often early indicators that a reversal could be in store, as the move has extended beyond its range without the buying or selling pressure to sustain it.

Phantom escape bubbles on chart

Excess Zones

Excess zones mark prices where one side kept paying up and could not get through: buyers lifting offers into a high, or sellers hitting bids into a low, while price stalled. A bearish zone (sell color, solid top edge) is a ceiling where buying was absorbed. A bullish zone (buy color, solid bottom edge) is a floor where selling was absorbed. The solid edge is the level. Like delta zones and impact levels, these are areas of interest, not entries. Watch how price behaves when it returns to the solid edge, at a level where aggression has already failed once.

Bearish and bullish Excess zones on an NQ chart

Supported Bar Types

ScalperIQ is designed to work with the following bar types:

  • Tick
  • Linear (up to 30 min time frame)**
  • Constant Volume
  • Range
  • Renko
  • Hybrid Renko
  • NT Renko
  • Point & Figure
  • Reversal

**Note that loading times for linear charts may be long. We recommend reducing the # of bars on your chart when using linear bars.

Use Cases

ScalperIQ supports a variety of short-term and intraday strategies. The suite is best used in conjunction with other price action or volume-based tools.

Trend Confirmation: Persistent delta alignment with price movement helps confirm trend direction. Strong positive delta in a rising market suggests sustained buyer control.

Reversal Awareness: Aggressive shifts in delta (e.g., through pivots) may precede price reversals. Exhaustion markers can show where extreme moves are cooling off. Phantom escape bubbles flag moments where price pushed to extremes without order flow confirmation — early indicators that a breakout is failing and a reversal may follow.

Entry Timing for Scalping: Scalpers may use delta pivots, high-intensity delta zones, and Impact levels to identify precise moments of temporary imbalance that provide edge for short-duration trades.

Breakout Validation: Breakouts supported by strong directional delta are generally more reliable. Phantom bubbles at price extremes can signal that a breakout lacks conviction — price extended without order flow support, suggesting the move may fail and a reversal could follow. Weak delta on a breakout may indicate a potential fake out.

Support/Resistance Refinement: Delta zones and Impact levels provide refined intraday support and resistance based on aggressive order activity rather than static levels. Impact levels highlight where outsized trades occurred, while delta zones reflect areas of cumulative pressure.

Platform Support

ScalperIQ is currently available for use on the MotiveWave, EdgeProX, and NinjaTrader platforms. If you have platform-specific questions regarding installation, chart settings, or general usage unrelated to ScalperIQ, please refer to the respective platform documentation:

FAQs & Troubleshooting

I see "Waiting for ScalperIQ Tick Engine..." — what does this mean?

ScalperIQ studies (Delta Flow, Phantom, Impact, Excess Levels) require the Tick Engine to be on the same chart. Right-click your chart, select Indicators, and add ScalperIQ Tick Engine first. Once the engine is loaded, your studies will automatically connect and begin displaying data.

I added the Tick Engine but my study still isn't showing data.

The Tick Engine needs a moment to process historical tick data after being added. Wait for the engine's loading message to clear. If the issue persists, try removing and re-adding the study. Make sure both the engine and the study are on the same chart with the same instrument and bar type.

Why do positive delta candles sometimes appear in a downtrend, or negative delta candles in an uptrend?

This is due to the Averaging Period setting. A higher averaging period smooths out fluctuations, making delta values more stable but slower to react to changes. This can result in positive delta appearing even as price declines, or negative delta showing up as price rises. In contrast, a lower averaging period reacts more quickly to recent order flow changes but may introduce more noise. Traders should adjust this setting based on their preference for signal stability versus sensitivity and their chosen trading time frame.

I placed my .license file, but none of my candles are colored, and I don't see any markers or zones.

If the study is not displaying any visual elements after placing your .license file, try the following troubleshooting steps:

  1. Toggle a Setting: Adjust any setting within the study's configuration panel and apply the changes to see if it resolves the issue.
  2. Remove and Reapply the Study: Delete the study from your chart and reapply it.
  3. Verify Your License Key: Double-check that the license key was placed into the NinjaTrader 8 folder in your C:\Users\"Your Username"\Documents\NinjaTrader 8 folder.
  4. Restart the Platform: If the issue persists, restart NinjaTrader and reload the study.
  5. Contact Us: If you're still having trouble please email us at info@scalperIQ.com with "Troubleshooting" in the subject line.

Why do delta zones and delta pivots change position when I modify the averaging period?

Changes to the averaging period setting affect how delta values are processed and visualized. Modifying this input alters the context used to evaluate what qualifies as a significant delta shift. As a result, the placement or presence of delta zones and pivots will adjust accordingly. This is expected behavior and reflects the recalculation of data under the new configuration.

I see less zones/delta pivots than in my max settings. Why?

The setting specifies the maximum number of pivots/zones that may be displayed. If fewer pivots/zones appear, it means fewer qualifying areas were detected than the max setting.

Why aren't my candles changing color?

Ensure "Enable Candle Coloring" is active and that delta values exceed the threshold. If a custom theme is selected, individual color overrides will be disabled.

Why don't I see delta pivots?

Confirm that "Draw Delta Pivots" is enabled.

Why is the indicator running slowly?

ScalperIQ runs tick level calculations which can be intensive. To feel more responsive, right-click the chart and select "Data Series..." to reduce the number of days/weeks loaded for your time frame.

Can I use this during pre-market or extended hours?

Yes. To include all trading hours, uncheck "Use RTH Data Only" in Delta Flow's 06 Session group, or "RTH Only (All Studies)" on the Tick Engine to set it for every study at once.

Phantom, Impact and Excess Levels use their own overnight controls instead — Show Overnight (ETH) Markers (Phantom), Show ETH Levels (Impact) or Show ETH Zones (Excess Levels), each with its own Max setting.

When I turn RTH Data Only on or off, my markers and zones change positions. Why?

This occurs because the calculation for delta zones and pivots is based on the data available. When "Use RTH Data Only" is enabled, calculations are performed using only regular trading hours, excluding pre-market and after-hours data. When disabled, the full session is included, which can impact where zones and pivots appear.

Why do I see different signals than another user on the same asset and timeframe?

Tick data is inherently noisy and can vary slightly between users due to differences in data feed timing or how local data is stored. Complete synchronization between users may not always be possible, especially if one user's chart has been running longer than another's.

However, differences in alignment do not reduce the accuracy of signals. The indicator is designed to adapt to incoming data consistently, meaning that even if two users see slight variations, the signals themselves remain reliable and relevant for each user's setup.

Do I still need to enable Tick Replay?

No. As of version 2.0.0, ScalperIQ no longer requires Tick Replay to be enabled. The Tick Engine handles historical tick data processing automatically. If you previously enabled Tick Replay, we recommend disabling it as it can slow down chart loading times.

Does ScalperIQ need an internet connection?

A lifetime key never does: it is checked on your machine and never contacts the license server. A subscription needs a connection the first time 3.0 loads, which updates your license file automatically. After that it checks in every few hours, and if the server can't be reached it keeps running from the local file for 72 hours past its next scheduled check, about three days in all. Past that, the chart shows "Verifying license" until the connection is back.

Where is the .license file for a lifetime key, and what is "key #NNNN"?

The key arrives as a .license file attached to your purchase email. Save it in Documents\NinjaTrader 8 and restart the platform. ScalperIQ 3.0 looks for license files in MotiveWave Extensions, EdgeProX Extensions and Documents\NinjaTrader 8 on every platform, so any of them works. You don't need to delete an older subscription license: when both are present, a valid lifetime key is always used. The chart then shows key #NNNN in the bottom-left corner, your key number. Quote that number if you contact support.

Can I move ScalperIQ to a different computer?

A lifetime license is for one person on their own machines. On the new machine, import the ScalperIQ zip from Downloads and copy your .license file into Documents\NinjaTrader 8. Subscription licenses are bound to a machine; use Move License in the portal first.

Which version do I need for a lifetime key?

ScalperIQ 3.0.0 or newer. Lifetime keys do not work on 2.x builds. Download the current version from Downloads.

Does one lifetime key cover MotiveWave, EdgeProX and NinjaTrader 8?

Yes. The key is not tied to a platform or a machine. Put the same .license file in the folder for each platform you use.

The chart says "Verifying license". What does that mean?

This only appears with a subscription. ScalperIQ could not reach the license server and the local license is past its offline window, so it keeps retrying on its own. Check your internet connection; the message clears when the check succeeds. A lifetime key never shows it.

The chart says "License signature validation failed".

The .license file was changed after it was issued. This can happen if an email client or editor re-saves the attachment. Save the original attachment from your purchase email again, straight into the folder, without opening it. If that doesn't fix it, email support with your key number.

Excess Levels shows "calibrated for NQ/MNQ and ES/MES - [symbol] is uncalibrated".

Excess Levels is calibrated on NQ/MNQ and ES/MES. On any other symbol it still draws zones using the NQ thresholds, and the line tells you those zones have not been validated on that symbol. Nothing is wrong with your install.

Excess Levels shows "needs 20 completed bars".

The study needs at least 20 completed bars before it can measure anything. Load more history on the chart and the message clears.

For all other questions please email info@scalperIQ.com

Ready to see it on your chart?

Get Lifetime Access — $400One-Time →

Every current study on MotiveWave, EdgeProX and NinjaTrader 8. All sales final.
